SKU: 6003-ZZ-CDX

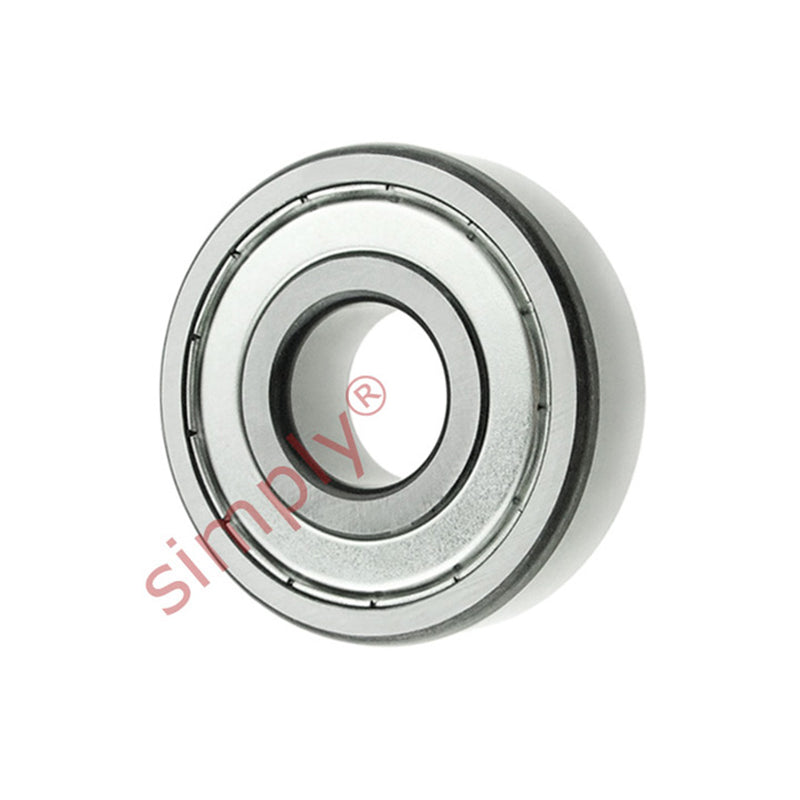

Codex 6003ZZ Metal Shielded Deep Groove Ball Bearing 17x35x10mm
Equivalent to: 6003ZZ 60032Z 60032ZR 6003ZZE 6003FF 6003DD 6003DDC 6003KDDC EL17ZZ EL172Z 9103KDD 9103FF 103KSFF 773L03 6103PP
In stock
Price Break
Couldn't load pickup availability
Share this product
Description
|
Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
- Brand / Quality:
- Codex - Good Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 35mm
- Width:
- 10mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
| d | 17mm |
|---|---|
| D | 35mm |
| B | 10mm |
| Dynamic load C | 6.37 kN |
| Static load Co | 3.25 kN |
| Fatigue load limit Pu | 0.137 |
| Reference speed | 45000 rpm |
| Limiting speed | 22000 rpm |
| Weight | 0.039 kg |
| d1 | 23mm |
| D2 | 31.4mm |
| r1r2 min | 0.3mm |
| da min | 19mm |
| Da max | 33mm |
| ra max | 0.3 |
| Calc factor kr | 0.025 |
| Calc factor Cor f0 | 14 |
