• NACHI 6003ZZE Metal Shielded Deep Groove Ball Bearing 17x35x10mm
  • Nachi
1 2

SKU: 6003-ZZE-NACHI

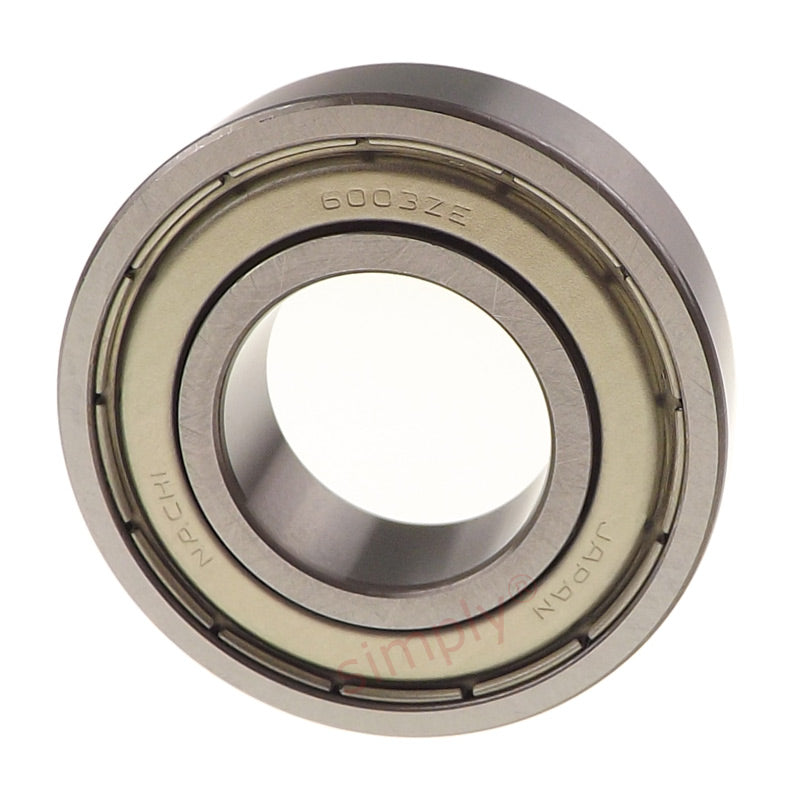

NACHI 6003ZZE Metal Shielded Deep Groove Ball Bearing 17x35x10mm

NACHI 6003ZZE Metal Shielded Deep Groove Ball Bearing 17x35x10mm
€6,02 ex VAT
€6,02 ex VAT
Sale Sold out

Equivalent to: 6003ZZ 60032Z 6003.2Z 6003KDD 6003DD 60032ZR 6003FF

In stock

Price Break
5+ €4,58
9+ €4,32
19+ €4,27
29+ €4,22
49+ €4,16
74+ €4,11
99+ €3,86
199+ €3,80
249+ €3,75
499+ €3,70
999+ €3,60

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
NACHI Metal Shielded Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two steel shields to provide a labyrinth clearance.
Benefits: High-running accuracy and high-speed operation.
Brand / Quality:
Nachi - High Quality
Inside Diameter:
17mm
Outside Diameter:
35mm
Width:
10mm
Seals / Shields:
Metal Shielded
Clearance:
* Standard
Technical
Inside Diameter d 17mm
Outside Diameter D 35mm
Width B 10mm
Min radius r 0.3mm
Dynamic load 6000 kN
Static load 3250 kN
Max speed 22000 rpm
da min 19mm
Da max 33mm
ra max 0.3mm
Weight 0.039 kg
