SKU: 6004-2Z/C3-EU

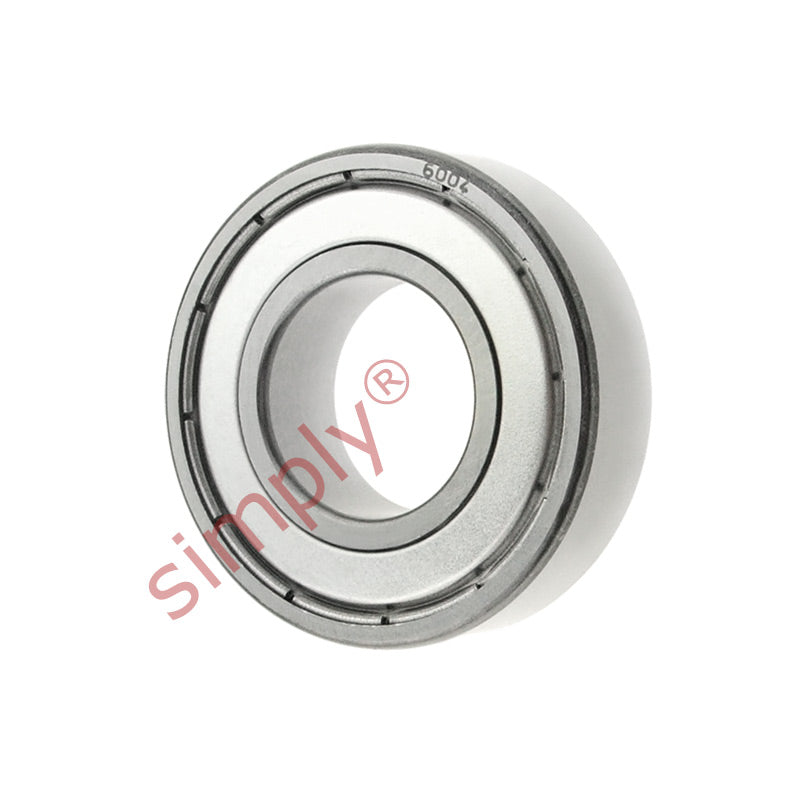

6004ZZC3 Budget Metal Shielded Deep Groove Ball Bearing 20x42x12mm
Equivalent to: 6004.2ZC3 6004KDDC3 6004DDC3 6004FFC3 60042ZRC3 6004ZZEC3 6004ZZC3
In stock
Price Break
Couldn't load pickup availability
Share this product
Description
|
Budget Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 42mm
- Width:
- 12mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- C3
Technical
| d | 20mm |
|---|---|
| D | 42mm |
| B | 12mm |
| r min | 0.6mm |
| Dynamic load Cr | 9.4 kN |
| Static load Cor | 5.05 kN |
| Speed in grease | 17000 rpm |
| Speed in oil | 21000 rpm |
