SKU: 6004-NTN

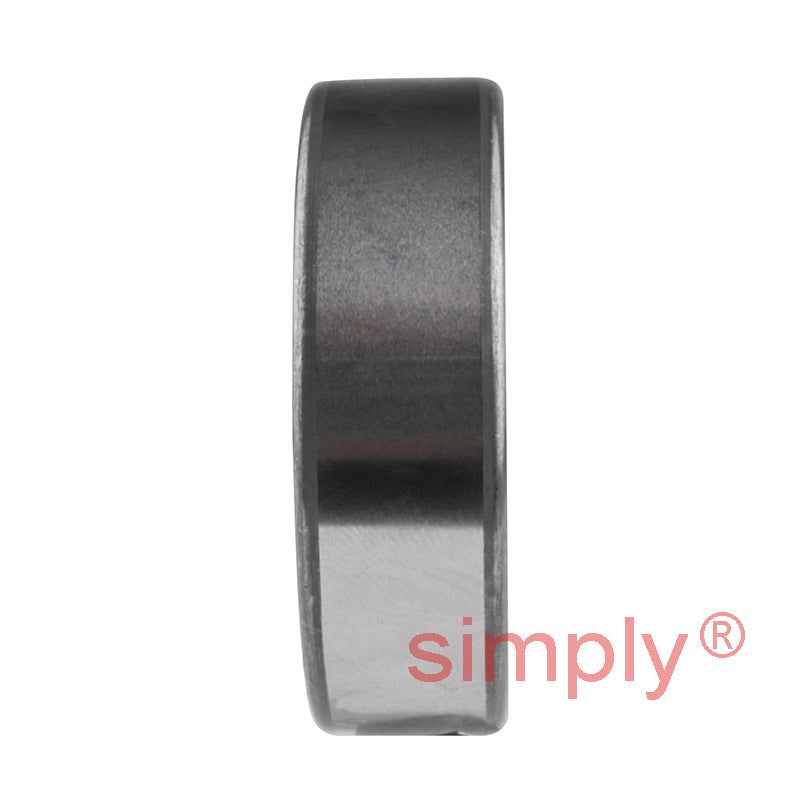

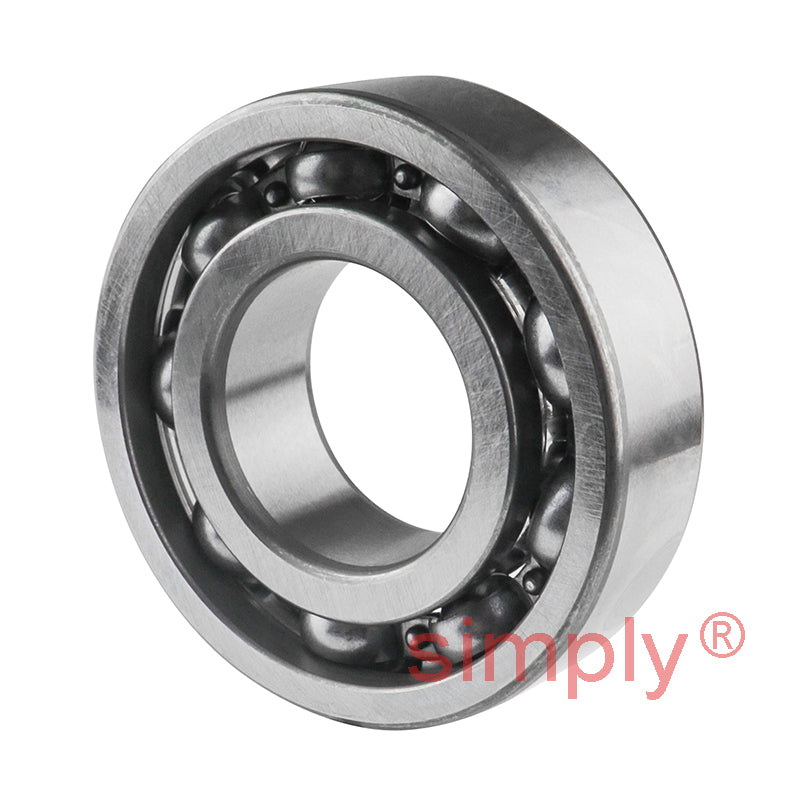

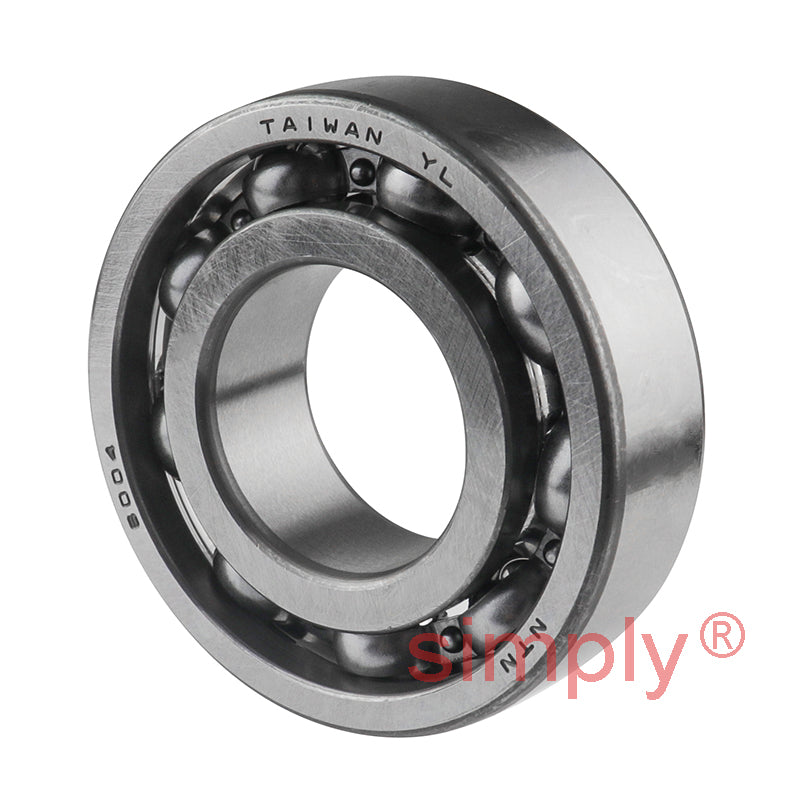

NTN 6004 Open Type Deep Groove Ball Bearing 20x42x12mm
NTN 6004 Open Type Deep Groove Ball Bearing 20x42x12mm
Regular price
€6,63
ex VAT
Regular price
Sale price
€6,63
ex VAT
Equivalent to: 6004CM 9104K 9104 104KS 6104 3L04 EL20 ELL20
In stock
Price Break
3+
€5,04
5+
€4,75
10+
€4,70
25+
€4,64
49+
€4,58
74+
€4,53
99+
€4,25
199+
€4,19
249+
€4,13
499+
€4,08
999+
€3,96
Quantity
Couldn't load pickup availability
Share this product
Description
Description
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution.
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 42mm
- Width:
- 12mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 20mm |
| D | 42mm |
| B | 12mm |
| r<sub>s</sub> min | 0.6mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 10.4 kN |
| C<sub>or</sub> | 5.05 kN |
| C<sub>u</sub> | 0.355 kN |
| f<sub>0</sub> | 13.9 kN |
| Grease | 18000 rpm |
| Oil | 21000 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 24mm |
| D<sub>a</sub> Max. | 38mm |
| r<sub>as</sub> Max. | 0.6mm |
| Weight | 0.069 kg |
