SKU: 6006-2RS-CDX

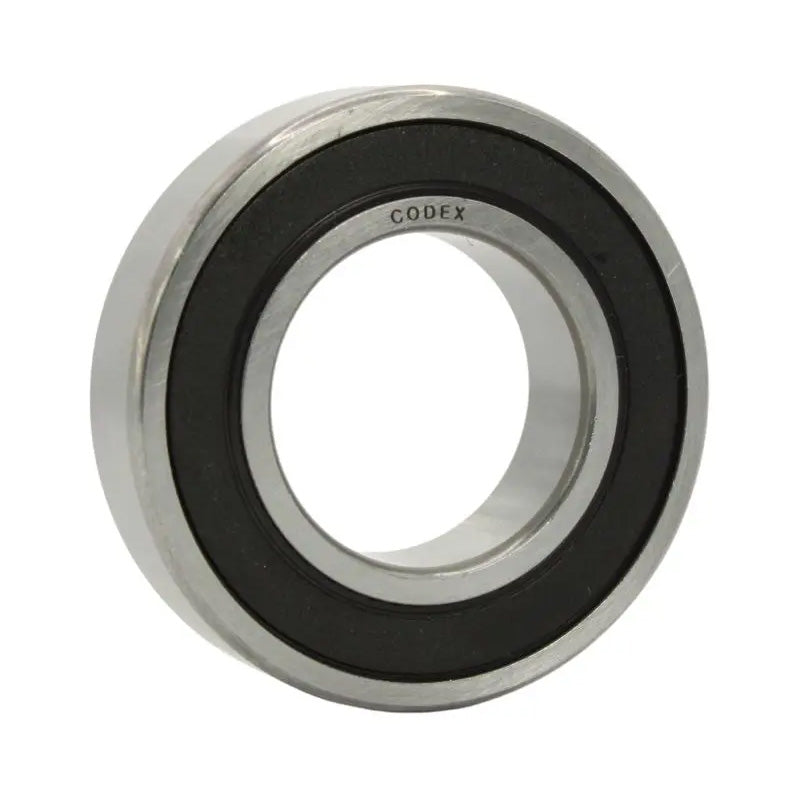

Codex 60062RS Rubber Sealed Deep Groove Ball Bearing 30x55x13mm
Codex 60062RS Rubber Sealed Deep Groove Ball Bearing 30x55x13mm
Regular price
€7,92
ex VAT
Regular price
Sale price
€7,92
ex VAT
Equivalent to: 60062RS 60062RSH 60062RS1 60062RSR 60062RSL 6006LFS 6006EE 6006DU 6006LLU EL302RS 6006PP 9106PP 106KSZZ 993L06 6106KK 10L30
In stock
Price Break
4+
€6,02
10+
€5,68
20+
€5,61
30+
€5,55
50+
€5,48
75+
€5,41
100+
€5,07
200+
€5,00
250+
€4,94
500+
€4,87
1000+
€4,73
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing |
- Brand / Quality:
- Codex - Good Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 55mm
- Width:
- 13mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
Technical
| d | 30mm |
|---|---|
| D | 55mm |
| B | 13mm |
| Dynamic load C | 13.8 kN |
| Static load Co | 8.3 kN |
| Fatigue load limit Pu | 0.355 |
| Reference speed | 28000 rpm |
| Limiting speed | 14000 rpm |
| Weight | 0.12 kg |
| d1 | 38.2mm |
| D2 | 49mm |
| r1r2 | 1mm |
| da min | 34.6mm |
| Da max | 50.4mm |
| ra max | 1mm |
| Calc factor kr | 0.025 |
| Calc factor Cor f0 | 15 |
