SKU: 6007-2RS/C3-CDX

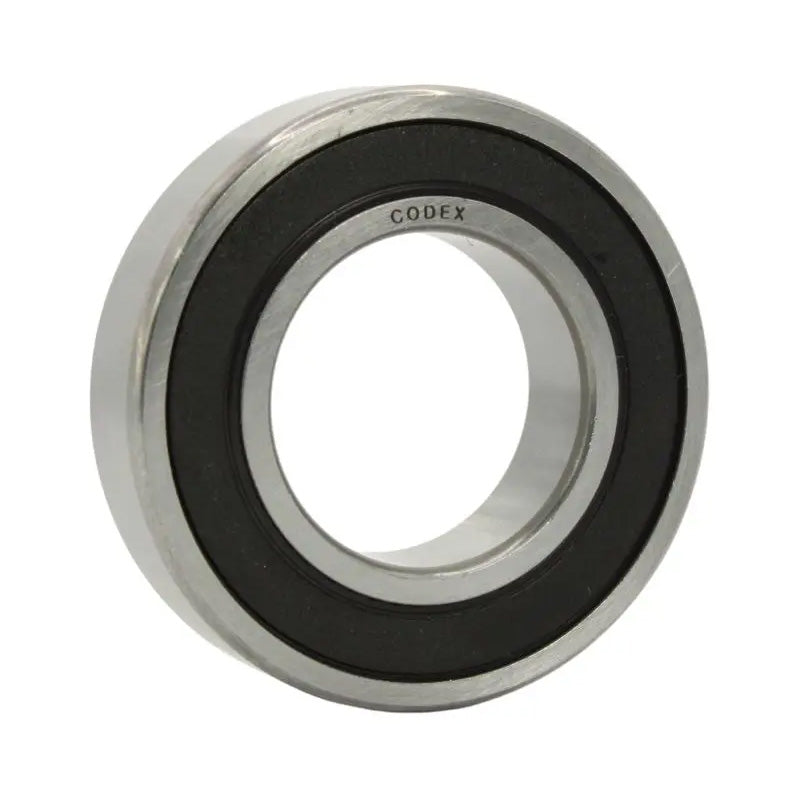

Codex 60072RSC3 Rubber Sealed Deep Groove Ball Bearing 35x62x14mm
Equivalent to: 60072RSC3 60072RSHC3 60072RS1C3 60072RSRC3 60072RSLC3 6007LFSC3 6007EEC3 6007DUC3 6007LLUC3 EL352RSC3 6007PPC3 9107PPC3 107KSZZC3 993L07C3 6107KKC3 10L35C3
In stock
Price Break
Couldn't load pickup availability
Share this product
Description
|
Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing |
- Brand / Quality:
- Codex - Good Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 62mm
- Width:
- 14mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- C3
Technical
| d | 35mm |
|---|---|
| D | 62mm |
| B | 14mm |
| Dynamic load C | 16.8 kN |
| Static load Co | 10.2 kN |
| Fatigue load limit Pu | 0.44 |
| Reference speed | 24000 rpm |
| Limiting speed | 7000 rpm |
| Weight | 0.16 kg |
| d1 | 43.8mm |
| D2 | 55.6mm |
| r1r2 | 1mm |
| da min | 39.6mm |
| Da max | 57.4mm |
| ra max | 1mm |
| Calc factor kr | 0.025 |
| Calc factor Cor f0 | 15 |
