SKU: 6007-ZZE-NACHI

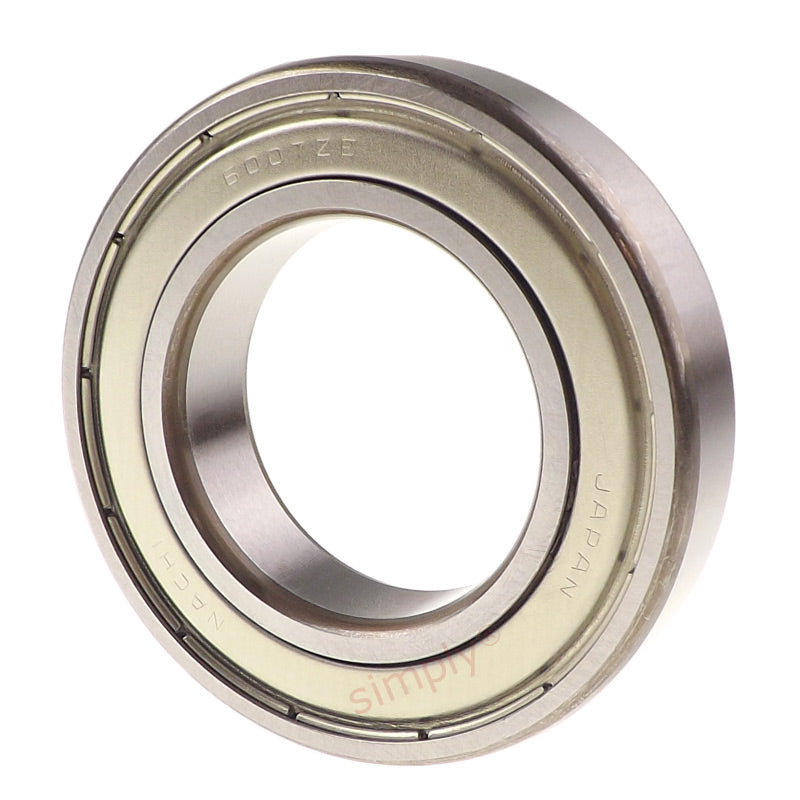

NACHI 6007ZZE Metal Shielded Deep Groove Ball Bearing 35x62x14mm
NACHI 6007ZZE Metal Shielded Deep Groove Ball Bearing 35x62x14mm
Regular price
€11,63
ex VAT
Regular price
Sale price
€11,63
ex VAT
Equivalent to: 6007ZZ 60072Z 6007.2Z 6007KDD 6007DD 60072ZR 6007FF
In stock
Price Break
5+
€8,84
9+
€8,34
19+
€8,24
29+
€8,14
49+
€8,04
74+
€7,94
99+
€7,45
199+
€7,35
249+
€7,25
499+
€7,15
999+
€6,95
Quantity
Couldn't load pickup availability
Description
Description
|
NACHI Metal Shielded Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two steel shields to provide a labyrinth clearance. Benefits: High-running accuracy and high-speed operation. |
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 62mm
- Width:
- 14mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
Technical
| Inside Diameter d | 35mm |
|---|---|
| Outside Diameter D | 62mm |
| Width B | 14mm |
| Min radius r | 1mm |
| Dynamic load | 16000 kN |
| Static load | 10300 kN |
| Max speed | 12000 rpm |
| da min | 40mm |
| Da max | 57mm |
| ra max | 1mm |
| Weight | 0.156 kg |
