SKU: 6007LLUC4/5K-NTN

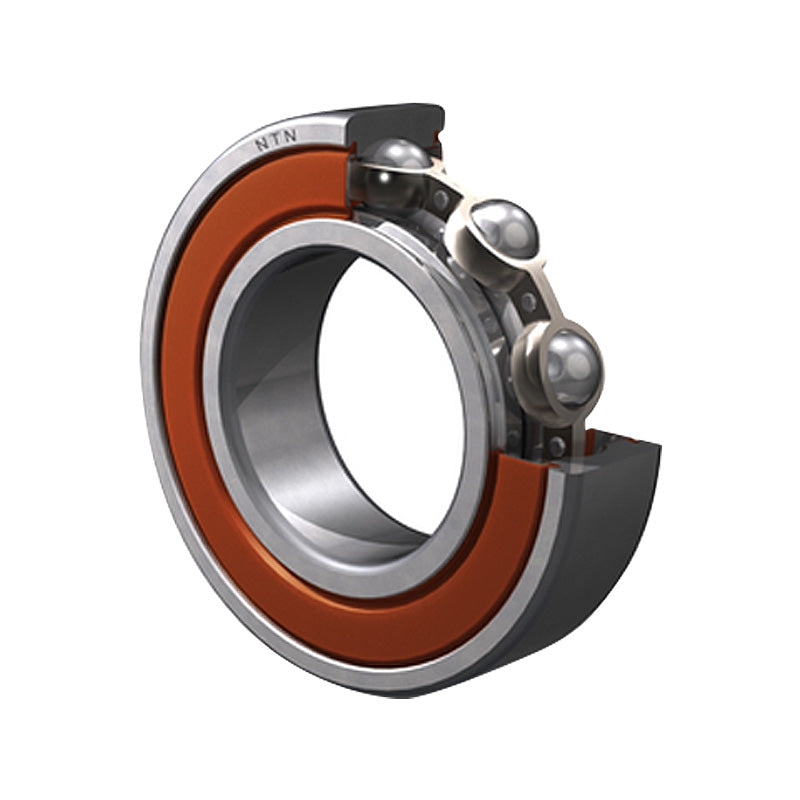

NTN 6007LLUC4/5K Contact Rubber Sealed Type Deep Groove Ball Bearing 35x62x14mm
Equivalent to: 6007NSEC4 6007DUC4 6007RSC4 6007RSHC4 6007PC4 6007RSRC4 6007LUC4 60072NSEC4 6007DDUC4 60072RSC4 6007-2RSC4 60072RS1C4 60072RSHC4 6007PPC4 60072RSRC4 6007LLUC4 6007RS2C4 60072RS2C4 60072RSLC4 6007LFSC4 6007EEC4 EL352RSC4 9107PPC4 107KSZZC4 993L07C4 6107KKC4 10L35C4
In stock
Price Break
Couldn't load pickup availability
Description
Contact Rubber Sealed Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of its simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two contact rubber seals in contact with the inner ring.
Benefits: High-running accuracy and high-speed operation, excellent grease sealing at low speeds, excellent protection against dust and water.
Note: These bearings are supplied pre-filled with grease, "/5k" refers to the grease: Multemp SRL (-40 deg C to +150 deg C)
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 62mm
- Width:
- 14mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- C4
Technical
| --- | Bearing dimensions |
|---|---|
| d | 35mm |
| D | 62mm |
| B | 14mm |
| r<sub>s</sub> min | 1mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 17.7 kN |
| C<sub>or</sub> | 10.3 kN |
| C<sub>u</sub> | 0.805 kN |
| f<sub>0</sub> | 14.8 kN |
| Speed | 6800 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 40mm |
| d<sub>a</sub> Max. | 42mm |
| D<sub>a</sub> Max. | 57mm |
| r<sub>as</sub> Max. | 1mm |
| Weight Kg | 0.155 kg |
