SKU: 6009-2RS1/C5L-SKF

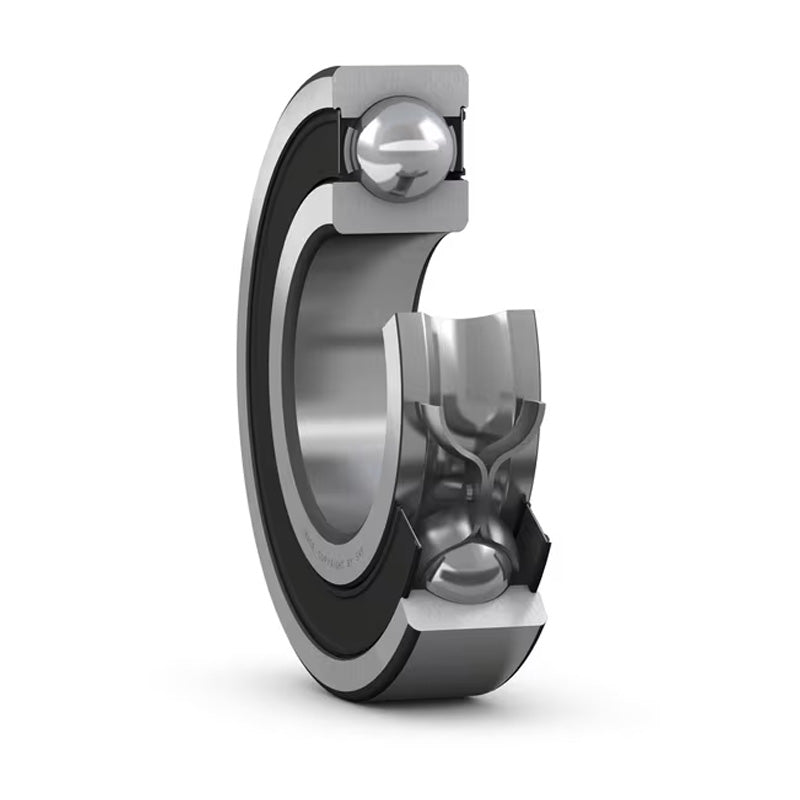

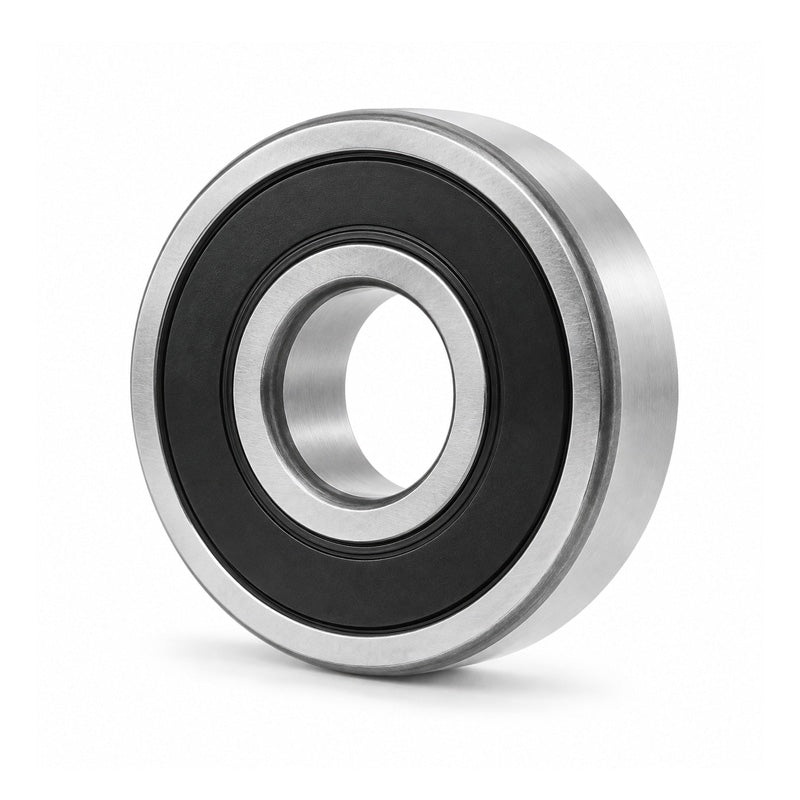

SKF 6009-2RS1/C5L Special High Internal Clearance Rubber Sealed Deep Groove Ball Bearing 45x75x16mm
Equivalent to: 6009NSEC5L 6009DUC5L 6009RSC5L 6009RSHC5L 6009PC5L 6009RSRC5L 6009LUC5L 60092NSEC5L 6009DDUC5L 60092RSC5L 60092RSHC5L 6009PPC5L 60092RSRC5L 6009LLU
In stock
Price Break
Couldn't load pickup availability
Share this product
Description
|
Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 75mm
- Width:
- 16mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- C5
Technical
| d | 45mm |
|---|---|
| D | 75mm |
| B | 16mm |
| Dynamic load C | 22.1 kN |
| Static load Co | 14.6 kN |
| Fatigue load limit Pu | 0.64 kN |
| Reference speed | 20000 rpm |
| Limiting speed | 5600 rpm |
| Weight | 0.25 kg |
| d1 | 54.8mm |
| D2 | 67.8mm |
| r1r2 min | 1mm |
| da min | 50.8mm |
| Da max | 69.2mm |
| ra max | 1mm |
| Calculation factor kr | 0.025 |
| Calculation factor f0 | 15 |
