SKU: 6010-2Z/C3-EU

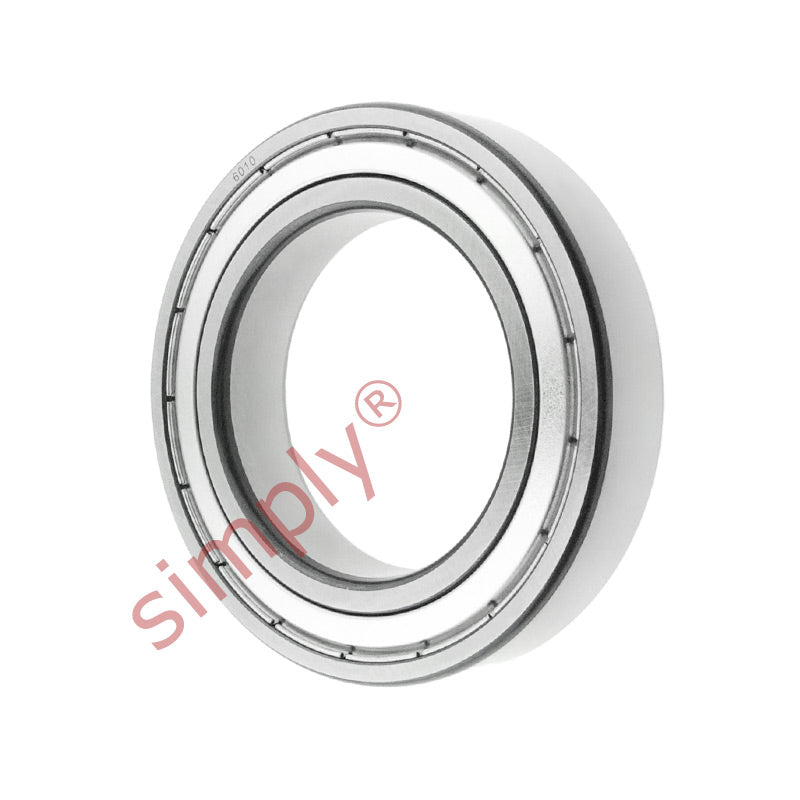

6010ZZC3 Budget Metal Shielded Deep Groove Ball Bearing 50x80x16mm
Equivalent to: 6010.2ZC3 6010KDDC3 6010DDC3 6010FFC3 60102ZRC3 60102ZRC3 6010ZZEC3 6010ZZC3
In stock
Price Break
Couldn't load pickup availability
Share this product
Description
|
Budget Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 80mm
- Width:
- 16mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- C3
Technical
| d | 50mm |
|---|---|
| D | 80mm |
| B | 16mm |
| r min | 1mm |
| Dynamic load Cr | 21.8 kN |
| Static load Cor | 16.6 kN |
| Speed in grease | 8400 rpm |
| Speed in oil | 9900 rpm |
