SKU: 6010ZZC3/5K-NTN

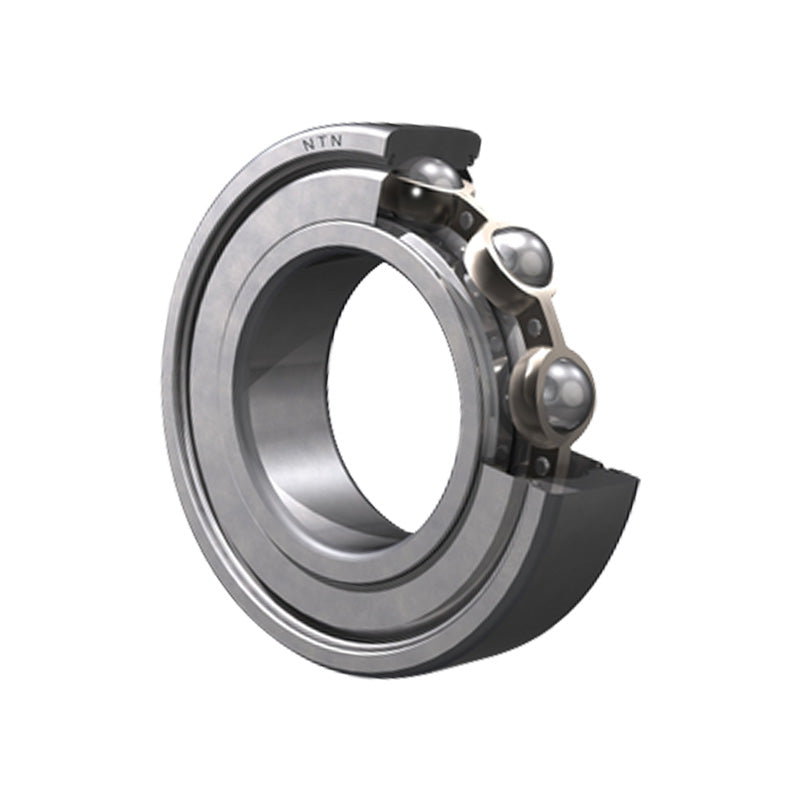

NTN 6010ZZC3/5K Metal Shielded Type Deep Groove Ball Bearing 50x80x16mm

NTN 6010ZZC3/5K Metal Shielded Type Deep Groove Ball Bearing 50x80x16mm
Regular price €28,20 ex VAT
Regular price Sale price €28,20 ex VAT
Sale Sold out

Equivalent to: 6010ZZC3 60102ZC3 6010ZZC3 60102ZRC3 6010ZZEC3 6010FFC3 6010DDC3 6010DDCC3 6010KDDCC3 EL502ZC3 EL50ZZC3 9110KDDC3 9110FFC3 110KSFFC3 773L10C3 6110PPC3

In stock

Price Break
3+ €21,43
5+ €20,23
10+ €19,99
25+ €19,75
49+ €19,50
74+ €19,26
99+ €18,06
199+ €17,82
249+ €17,58
499+ €17,34
999+ €16,86
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Bearing dimensions
d 50mm
D 80mm
B 16mm
r<sub>s</sub> min 1mm
--- Loads angles and speeds
C<sub>r</sub> 24.2 kN
C<sub>or</sub> 16.6 kN
C<sub>u</sub> 1.24 kN
f<sub>0</sub> 15.5 kN
Grease 8400 rpm
Oil 9800 rpm
--- Fitting Dimensions
d<sub>a</sub> Min. 55mm
d<sub>a</sub> Max. 57.5mm
D<sub>a</sub> Max. 75mm
r<sub>as</sub> Max. 1mm
Weight 0.261 kg
