SKU: 6010ZZNR/5K-NTN

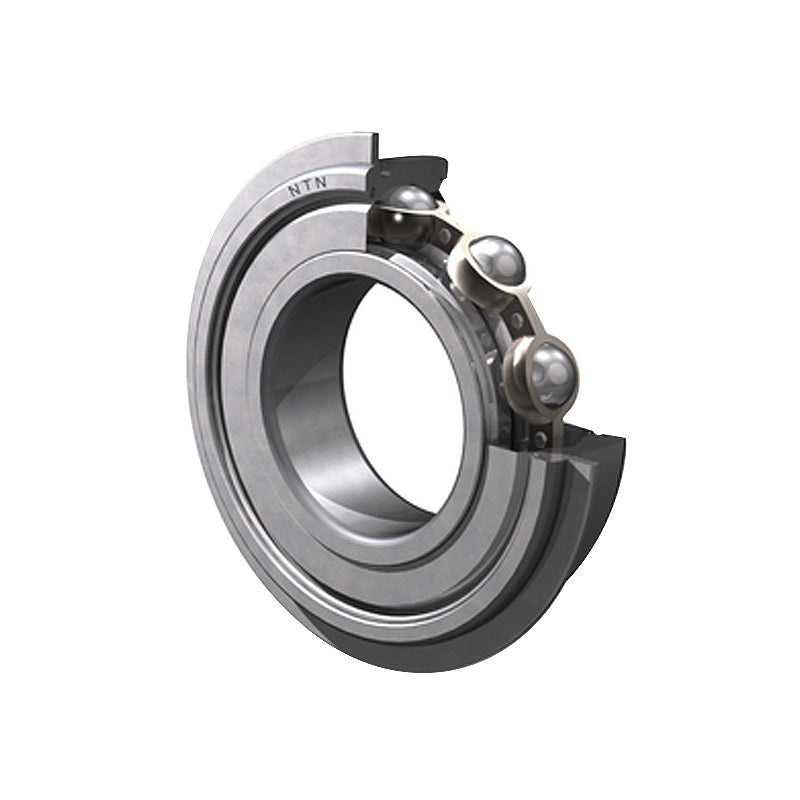

NTN 6010ZZNR/5K Metal Shielded Type Deep Groove Ball Bearing with Snap Ring 50x80x16mm
Equivalent to: 6010ZZNRCM 6010ZZNR 6010ZZNR 60102ZNR 6010ZZNR 60102ZRNR 6010ZZENR 6010FFNR 6010DDNR 6010DDCNR 6010KDDCNR EL502ZNR EL50ZZNR 9110KDDG 4773L10 110KSFFG
In stock
Price Break
Couldn't load pickup availability
Description
|
Metal Shielded Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured with metal shields offering some protection against mechanical damage and serving to retain the lubricant in the sealed for life bearing. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
Note: These bearings are supplied pre-filled with grease, "/5k" refers to the grease: Multemp SRL (-40 deg C to +150 deg C)
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 80mm
- Width:
- 16mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
- Snap Ring:
- Snap Ring
Technical
| --- | Bearing dimensions |
|---|---|
| d | 50mm |
| D | 80mm |
| B | 16mm |
| r<sub>s</sub> min | 1mm |
| --- | Loads angles and speeds |
| rNS Min. | 0.5 kN |
| C<sub>r</sub> | 24.2 kN |
| C<sub>or</sub> | 16.6 kN |
| C<sub>u</sub> | 1.24 kN |
| f<sub>0</sub> | 15.5 rpm |
| Grease | 8400 rpm |
| --- | Fitting Dimensions |
| Oil | 9800 rpm |
| D<sub>1</sub> Max. | 76.81mm |
| a Max. | 2.49mm |
| b Min. | 1.9mm |
| r<sub>o</sub> Max. | 0.6mm |
