SKU: 6012-ZZE-NACHI

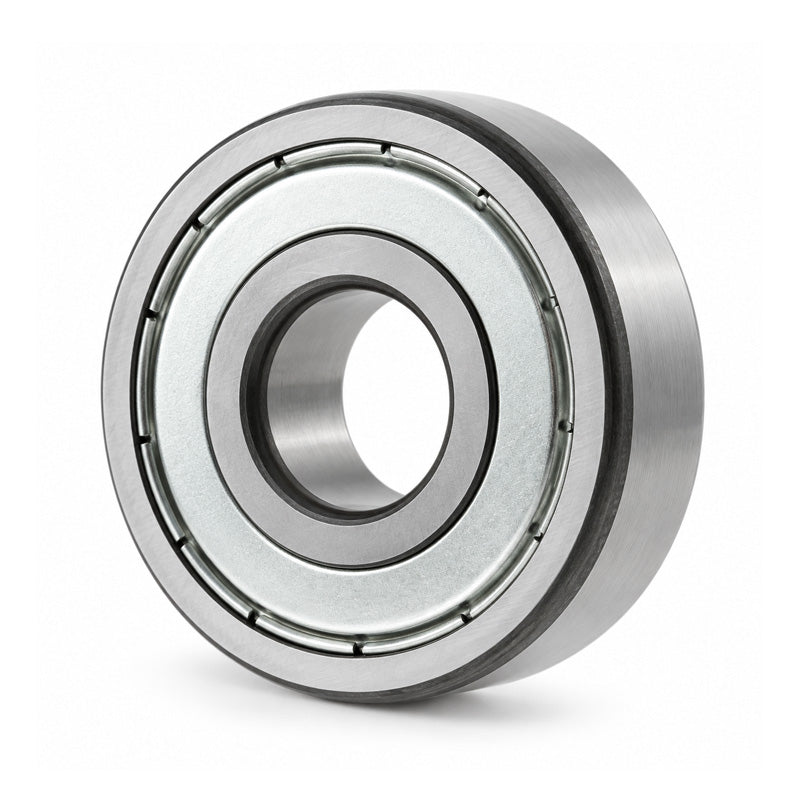

NACHI 6012ZZE Metal Shielded Deep Groove Ball Bearing 60x95x18mm
NACHI 6012ZZE Metal Shielded Deep Groove Ball Bearing 60x95x18mm
Regular price
€31,37
ex VAT
Regular price
Sale price
€31,37
ex VAT
Equivalent to: 6012ZZ 60122Z 6012.2Z 6012KDD 6012DD 60122ZR 6012FF
In stock
Price Break
5+
€23,84
9+
€22,50
19+
€22,24
29+
€21,97
49+
€21,70
74+
€21,43
99+
€20,09
199+
€19,82
249+
€19,56
499+
€19,29
999+
€18,75
Quantity
Couldn't load pickup availability
Description
Description
|
NACHI Metal Shielded Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two steel shields to provide a labyrinth clearance. Benefits: High-running accuracy and high-speed operation. |
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 95mm
- Width:
- 18mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
Technical
| Inside Diameter d | 60mm |
|---|---|
| Outside Diameter D | 95mm |
| Width B | 18mm |
| Min radius r | 1.1mm |
| Dynamic load | 29400 kN |
| Static load | 23200 kN |
| Max speed | 7100 rpm |
| da min | 66mm |
| Da max | 89mm |
| ra max | 1mm |
| Weight | 0.418 kg |
