SKU: 6012ZZNR/2AS-NTN

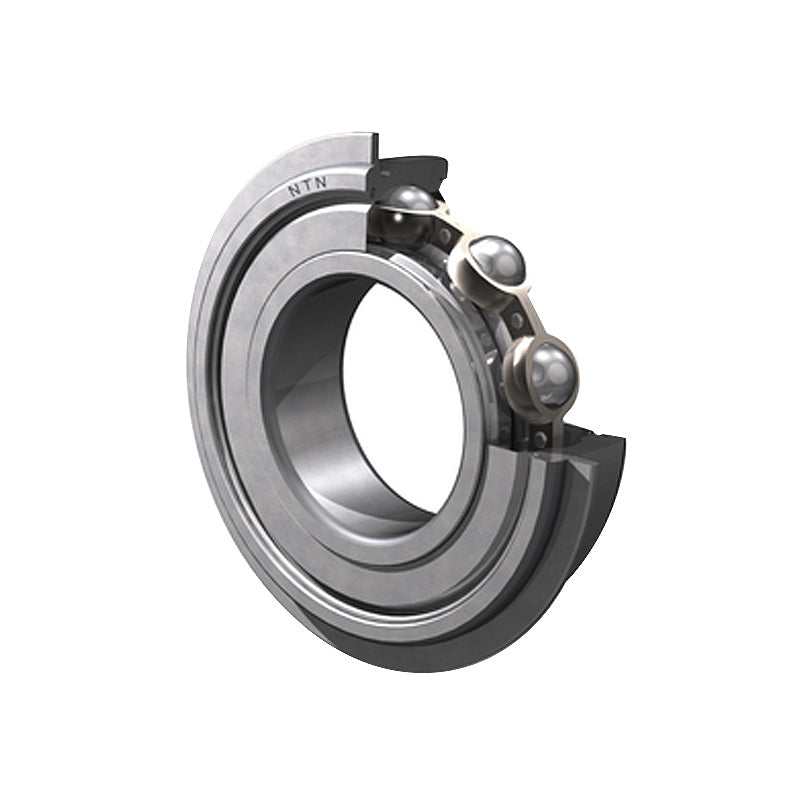

NTN 6012ZZNR/2AS Metal Shielded Type Deep Groove Ball Bearing with Snap Ring 60x95x18mm
Equivalent to: 6012ZZNRCM 6012ZZNR 6012ZZNR 60122ZNR 6012ZZNR 60122ZRNR 6012ZZENR 6012FFNR 6012DDNR 6012DDCNR 6012KDDCNR EL602ZNR EL60ZZNR 9112KDDG 4773L12 112KSFFG
In stock
Price Break
Couldn't load pickup availability
Description
|
Metal Shielded Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured with metal shields offering some protection against mechanical damage and serving to retain the lubricant in the sealed for life bearing. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
Note: These bearings are supplied pre-filled with grease, "/2AS" refers to Shell Alvania Grease S2
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 95mm
- Width:
- 18mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
- Snap Ring:
- Snap Ring
Technical
| --- | Bearing dimensions |
|---|---|
| d | 60mm |
| D | 95mm |
| B | 18mm |
| r<sub>s</sub> min | 1.1mm |
| --- | Loads angles and speeds |
| rNS Min. | 0.5 kN |
| C<sub>r</sub> | 32.5 kN |
| C<sub>or</sub> | 23.2 kN |
| C<sub>u</sub> | 1.73 kN |
| f<sub>0</sub> | 15.6 rpm |
| Grease | 7000 rpm |
| --- | Fitting Dimensions |
| Oil | 8300 rpm |
| D<sub>1</sub> Max. | 91.82mm |
| a Max. | 2.87mm |
| b Min. | 2.7mm |
| r<sub>o</sub> Max. | 0.6mm |
