SKU: 6013-NR-FAG

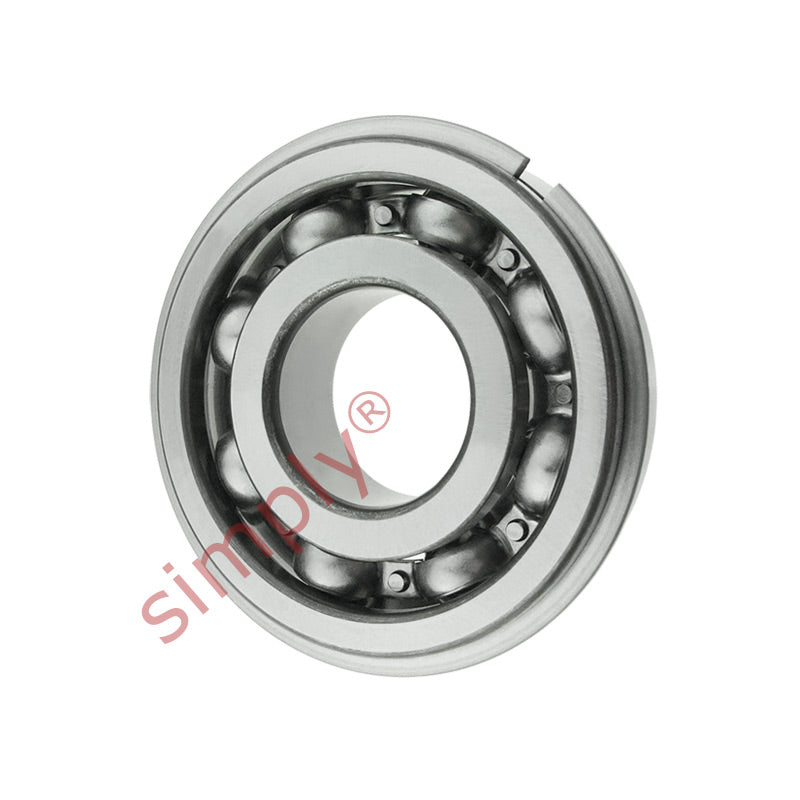

FAG 6013NR Deep Groove Ball Bearing with Snap Ring 65x100x18mm
FAG 6013NR Deep Groove Ball Bearing with Snap Ring 65x100x18mm
Out of stock
Share this product
Description
Description
|
Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 65mm
- Outside Diameter:
- 100mm
- Width:
- 18mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 65mm |
|---|---|
| D | 100mm |
| B | 18mm |
| Dyamic load C | 31.9 kN |
| Static load Co | 25 kN |
| Fatigue load limit Pu | 1.06 kN |
| Reference speed | 14000 rpm |
| Limiting speed | 9000 rpm |
| Mass | 0.43 kg |
| d1 | 76.3mm |
| d2 | 86.5mm |
| D2 | 91.5mm |
| r1r2 min | 1.1mm |
| da min | 71 |
