SKU: 6014-2RS-CDX

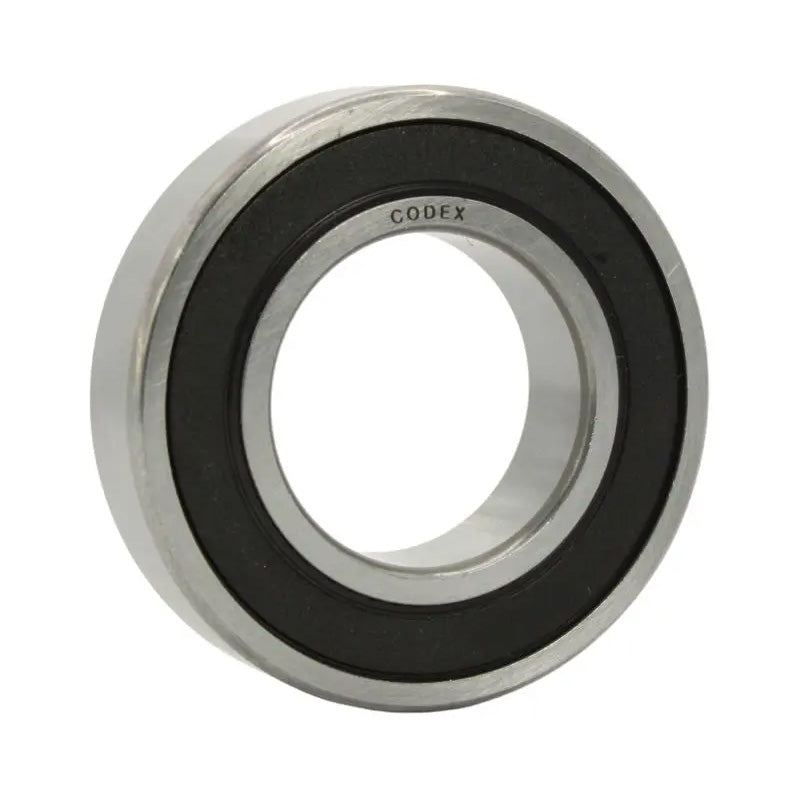

Codex 60142RS Rubber Sealed Deep Groove Ball Bearing 70x110x20mm
Codex 60142RS Rubber Sealed Deep Groove Ball Bearing 70x110x20mm
Regular price
€35,26
ex VAT
Regular price
Sale price
€35,26
ex VAT
Equivalent to: 60142RS 60142RSH 60142RS1 60142RSR 60142RSL 6014LFS 6014EE 6014DU 6014LLU EL702RS 6014PP 9114PP 114KSZZ 993L14 6114KK 10L70
In stock
Price Break
4+
€26,80
10+
€25,29
20+
€24,99
30+
€24,69
50+
€24,39
75+
€24,09
100+
€22,58
200+
€22,28
250+
€21,98
500+
€21,68
1000+
€21,08
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing |
- Brand / Quality:
- Codex - Good Quality
- Inside Diameter:
- 70mm
- Outside Diameter:
- 110mm
- Width:
- 20mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
Technical
| d | 70mm |
|---|---|
| D | 110mm |
| B | 20mm |
| Dynamic load C | 39.7 kN |
| Static load Co | 31 kN |
| Fatigue load limit Pu | 1.32 |
| Reference speed | 13000 rpm |
| Limiting speed | 3600 rpm |
| Weight | 0.6 kg |
| d1 | 82.9mm |
| r1r2 | 1.1mm |
| da min | 76mm |
| Da max | 104mm |
| ra max | 1mm |
| Calc factor kr | 0.025 |
| Calc factor Cor f0 | 16 |
