SKU: 6016-2RS/C3-CDX

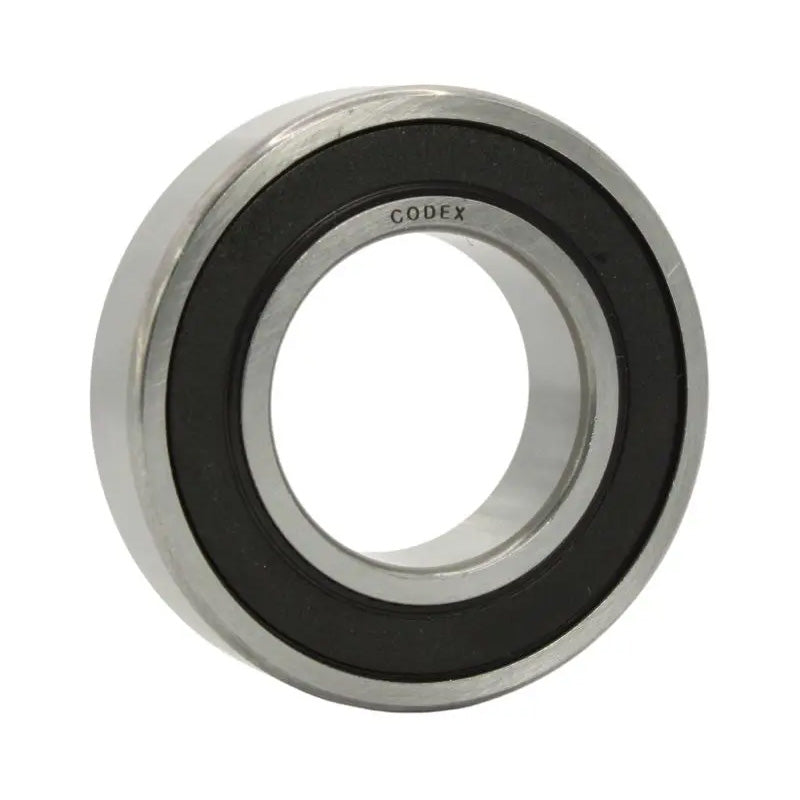

Codex 60162RSC3 Rubber Sealed Deep Groove Ball Bearing 80x125x22mm
Codex 60162RSC3 Rubber Sealed Deep Groove Ball Bearing 80x125x22mm
Regular price
€34,77
ex VAT
Regular price
Sale price
€34,77
ex VAT
Equivalent to: 60162RSC3 60162RSHC3 60162RS1C3 60162RSRC3 60162RSLC3 6016LFSC3 6016EEC3 6016DUC3 6016LLUC3 EL802RSC3 6016PPC3
In stock
Price Break
4+
€26,43
10+
€24,94
20+
€24,64
30+
€24,35
50+
€24,05
75+
€23,75
100+
€22,27
200+
€21,97
250+
€21,68
500+
€21,38
1000+
€20,78
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing |
- Brand / Quality:
- Codex - Good Quality
- Inside Diameter:
- 80mm
- Outside Diameter:
- 125mm
- Width:
- 22mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- C3
Technical
Technical
| d | 80mm |
|---|---|
| D | 125mm |
| B | 22mm |
| Dynamic load C | 49.4 kN |
| Static load Co | 40 kN |
| Fatigue load limit Pu | 1.66 |
| Reference speed | 11000 rpm |
| Limiting speed | 3200 rpm |
| Weight | 0.85 kg |
| d1 | 94.4mm |
| r1r2 | 1.1mm |
| da min | 86mm |
| Da max | 119mm |
| ra max | 1mm |
| Calc factor kr | 0.025 |
| Calc factor Cor f0 | 16 |
