• NACHI 6017ZZC3 Metal Shielded Deep Groove Ball Bearing 85x130x22mm
  • Nachi
1 2

SKU: 6017-ZZ/C3-NACHI

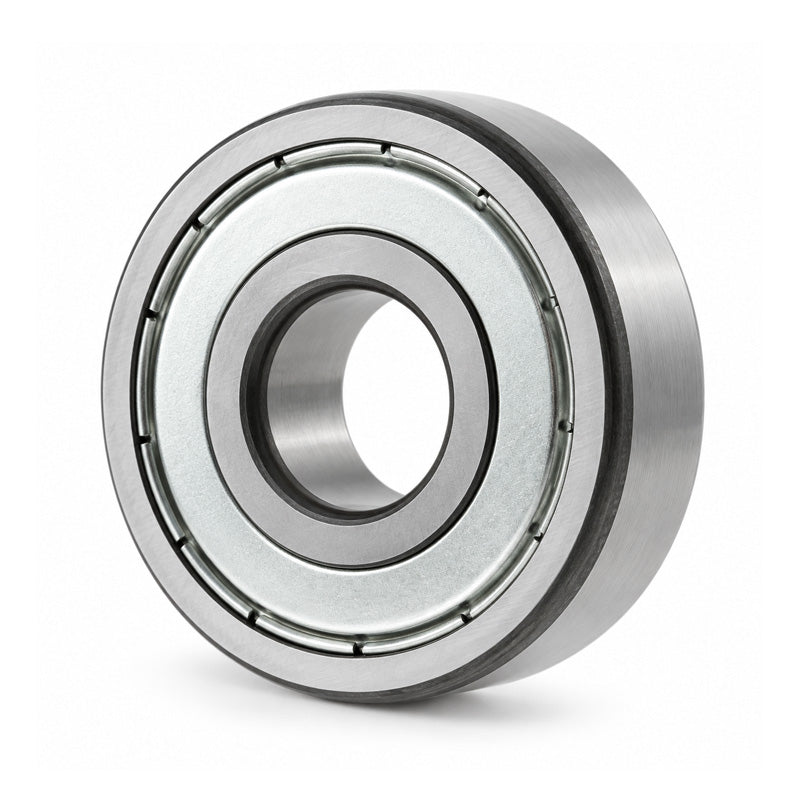

NACHI 6017ZZC3 Metal Shielded Deep Groove Ball Bearing 85x130x22mm

NACHI 6017ZZC3 Metal Shielded Deep Groove Ball Bearing 85x130x22mm
€82,74 ex VAT
€82,74 ex VAT
Sale Sold out

Equivalent to: 6017ZZEC3 60172ZC3 6017.2ZC3 6017KDDC3 6017DDC3 60172ZRC3 6017FFC3

In stock

Price Break
5+ €62,88
9+ €59,35
19+ €58,64
29+ €57,93
49+ €57,23
74+ €56,52
99+ €52,99
199+ €52,28
249+ €51,58
499+ €50,87
999+ €49,46

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
NACHI Metal Shielded Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two steel shields to provide a labyrinth clearance.
Benefits: High-running accuracy and high-speed operation.
Brand / Quality:
Nachi - High Quality
Inside Diameter:
85mm
Outside Diameter:
130mm
Width:
22mm
Seals / Shields:
Metal Shielded
Clearance:
C3
Technical
Inside Diameter d 85mm
Outside Diameter D 130mm
Width B 22mm
Min radius r 1.1mm
Dynamic load 49500 kN
Static load 43000 kN
Max speed 5000 rpm
da min 91mm
Da max 124mm
ra max 1.1mm
Weight 0.895 kg
