SKU: 6018-2RS-CDX

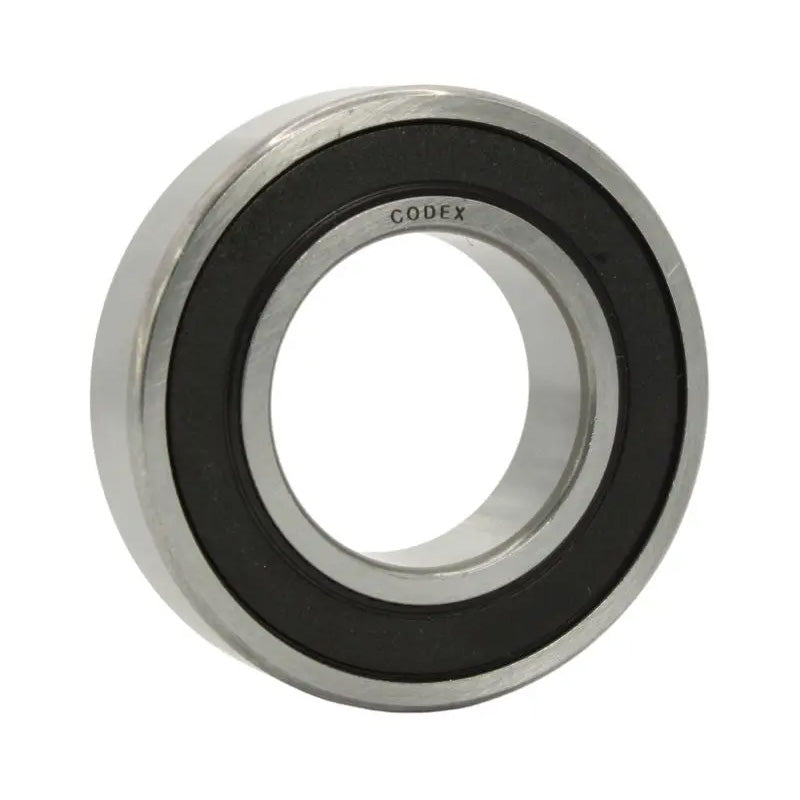

Codex 60182RS Rubber Sealed Deep Groove Ball Bearing 90x140x24mm
Codex 60182RS Rubber Sealed Deep Groove Ball Bearing 90x140x24mm
Regular price
€47,99
ex VAT
Regular price
Sale price
€47,99
ex VAT
Equivalent to: 60182RS 60182RSH 60182RS1 60182RSR 60182RSL 6018LFS 6018EE 6018DU 6018LLU EL902RS 6018PP
In stock
Price Break
4+
€36,48
10+
€34,43
20+
€34,02
30+
€33,61
50+
€33,20
75+
€32,79
100+
€30,74
200+
€30,33
250+
€29,92
500+
€29,51
1000+
€28,69
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing |
- Brand / Quality:
- Codex - Good Quality
- Inside Diameter:
- 90mm
- Outside Diameter:
- 140mm
- Width:
- 24mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
Technical
| d | 90mm |
|---|---|
| D | 140mm |
| B | 24mm |
| Dynamic load C | 60.5 kN |
| Static load Co | 50 kN |
| Fatigue load limit Pu | 1.96 |
| Reference speed | 10000 rpm |
| Limiting speed | 2800 rpm |
| Weight | 1.15 kg |
| d1 | 106mm |
| D2 | 128mm |
| r1r2 | 1.5mm |
| da min | 97mm |
| Da max | 133mm |
| ra max | 1.5mm |
| Calc factor kr | 0.025 |
| Calc factor Cor f0 | 16 |
