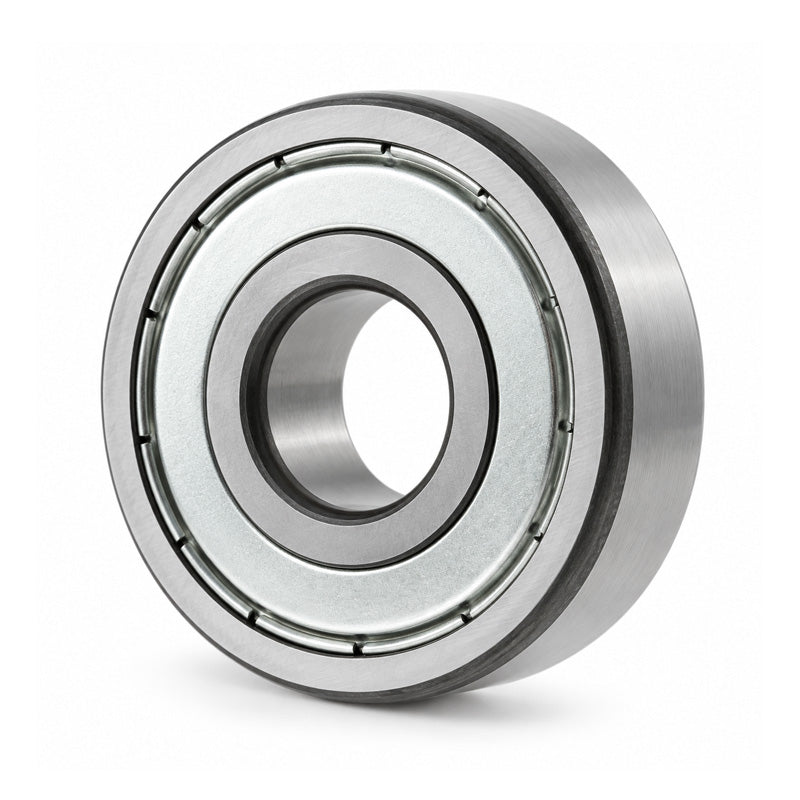

• NACHI 6019ZZC3 Metal Shielded Deep Groove Ball Bearing 95x145x24mm
  • Nachi
1 2

SKU: 6019-ZZ/C3-NACHI

NACHI 6019ZZC3 Metal Shielded Deep Groove Ball Bearing 95x145x24mm

NACHI 6019ZZC3 Metal Shielded Deep Groove Ball Bearing 95x145x24mm
€116,54 ex VAT
€116,54 ex VAT
Sale Sold out

Equivalent to: 6019ZZEC3 60192ZC3 6019.2ZC3 6019KDDC3 6019DDC3 60192ZRC3 6019FFC3

In stock

Price Break
5+ €88,57
9+ €83,59
19+ €82,60
29+ €81,60
49+ €80,61
74+ €79,61
99+ €74,63
199+ €73,64
249+ €72,64
499+ €71,65
999+ €69,66

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
NACHI Metal Shielded Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two steel shields to provide a labyrinth clearance.
Benefits: High-running accuracy and high-speed operation.
Brand / Quality:
Nachi - High Quality
Inside Diameter:
95mm
Outside Diameter:
145mm
Width:
24mm
Seals / Shields:
Metal Shielded
Clearance:
C3
Technical
Inside Diameter d 95mm
Outside Diameter D 145mm
Width B 24mm
Min radius r 1.5mm
Dynamic load 60500 kN
Static load 54000 kN
Max speed 4500 rpm
da min 102mm
Da max 138mm
ra max 1.5mm
Weight 1.22 kg
