SKU: 6019LLUC3/5K-NTN

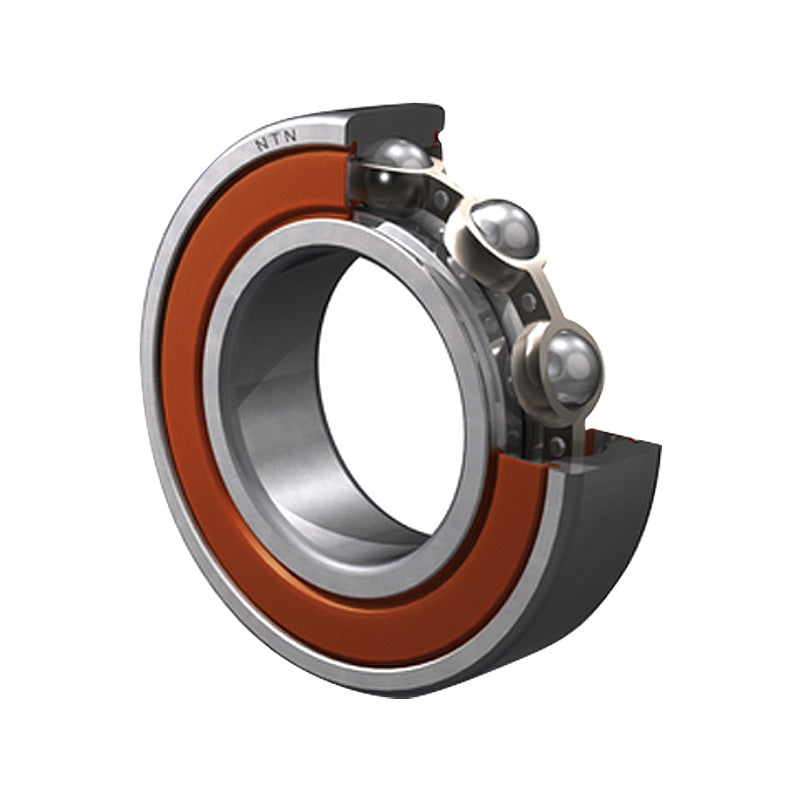

NTN 6019LLUC3/5K Contact Rubber Sealed Type Deep Groove Ball Bearing 95x145x24mm
Equivalent to: 6019NSEC3 6019DUC3 6019RSC3 6019RSHC3 6019PC3 6019RSRC3 6019LUC3 60192NSEC3 6019DDUC3 60192RSC3 6019-2RSC3 60192RS1C3 60192RSHC3 6019PPC3 60192RSRC3 6019LLUC3 6019RS2C3 60192RS2C3 60192RSLC3 6019LFSC3 6019EEC3 EL952RSC3 9119PPC3 119KSZZC3 993L19C3 6119KKC3 10L95C3
In stock
Price Break
Couldn't load pickup availability
Description
Contact Rubber Sealed Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of its simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two contact rubber seals in contact with the inner ring.
Benefits: High-running accuracy and high-speed operation, excellent grease sealing at low speeds, excellent protection against dust and water.
Note: These bearings are supplied pre-filled with grease, "/5k" refers to the grease: Multemp SRL (-40 deg C to +150 deg C)
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 95mm
- Outside Diameter:
- 145mm
- Width:
- 24mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- C3
Technical
| --- | Bearing dimensions |
|---|---|
| d | 95mm |
| D | 145mm |
| B | 24mm |
| r<sub>s</sub> min | 1.5mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 67 kN |
| C<sub>or</sub> | 54 kN |
| C<sub>u</sub> | 3.55 kN |
| f<sub>0</sub> | 15.8 kN |
| Speed | 2600 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 103mm |
| d<sub>a</sub> Max. | 109mm |
| D<sub>a</sub> Max. | 137mm |
| r<sub>as</sub> Max. | 1.5mm |
| Weight Kg | 1.08 kg |
