SKU: 6020-2Z/C3-SKF

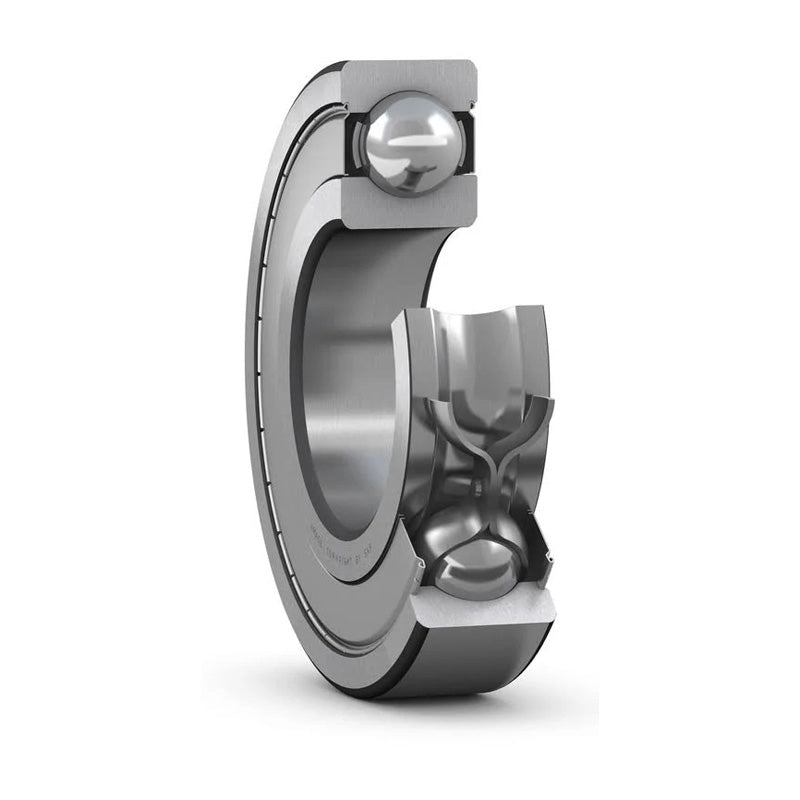

SKF 60202ZC3 Metal Shielded Deep Groove Ball Bearing 100x150x24mm
Equivalent to: 6020ZZEC3 6020ZZC3 6020.2ZC3 6020KDDC3 6020DDC3 60202ZRC3 6020FFC3
In stock
Price Break
Couldn't load pickup availability
Share this product
Description
|
Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 100mm
- Outside Diameter:
- 150mm
- Width:
- 24mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- C3
Technical
| d | 100mm |
|---|---|
| D | 150mm |
| B | 24mm |
| Dynamic load C | 63.7 kN |
| Static load Co | 54 kN |
| Fatigue load limit Pu | 2.04 kN |
| Reference speed | 9500 rpm |
| Limiting speed | 4500 rpm |
| Weight | 1.25 kg |
| d1 | 116mm |
| d2 | 0mm |
| D2 | 138mm |
| r1r2 min | 1.5mm |
| da min | 107mm |
| da max | 0mm |
| Da max | 143mm |
| ra max | 1.5mm |
| Calculation factor kr | 0.025 |
| Calculation factor f0 | 16 |
