SKU: 6020-NACHI

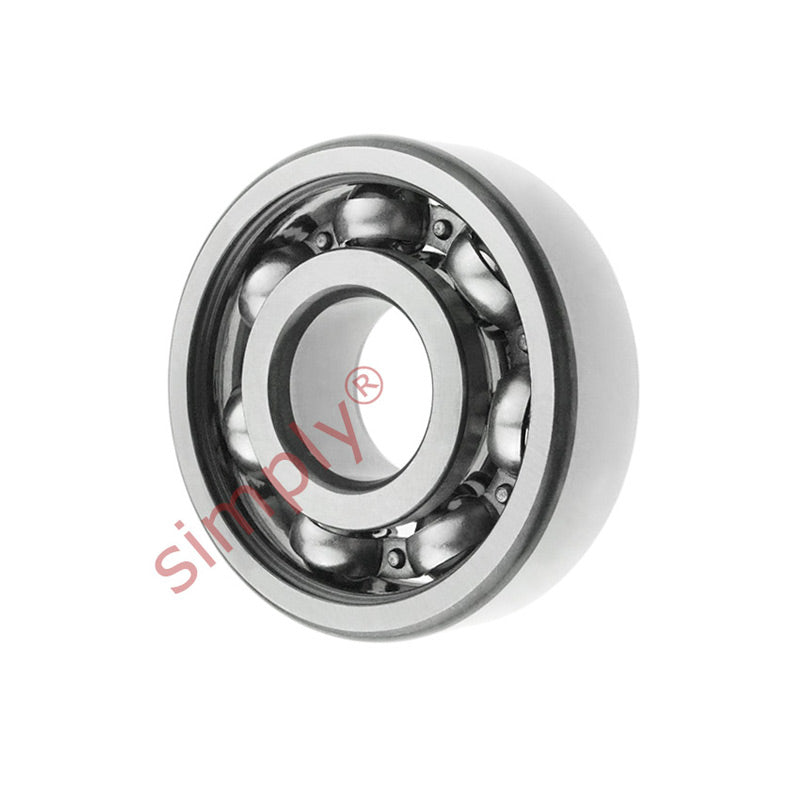

NACHI 6020 Open Deep Groove Ball Bearing 100x150x24mm
NACHI 6020 Open Deep Groove Ball Bearing 100x150x24mm
Regular price
€109,29
ex VAT
Regular price
Sale price
€109,29
ex VAT
In stock
Price Break
5+
€83,05
9+
€78,39
19+
€77,45
29+
€76,52
49+
€75,59
74+
€74,65
99+
€69,99
199+
€69,05
249+
€68,12
499+
€67,19
999+
€65,32
Quantity
Couldn't load pickup availability
Description
Description
|
NACHI Open Type Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This type of bearing consists of inner and outer rings, balls and a cage. Benefits: High-running accuracy and high-speed operation. |
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 100mm
- Outside Diameter:
- 150mm
- Width:
- 24mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| Inside Diameter d | 100mm |
|---|---|
| Outside Diameter D | 150mm |
| Width B | 24mm |
| Min radius r | 1.5mm |
| Dynamic load | 60000 kN |
| Static load | 54000 kN |
| Max speed in oil | 5300 rpm |
| Max speed in grease | 4300 rpm |
| da min | 107mm |
| Da max | 143mm |
| ra max | 1.5mm |
| Weight | 1.26 kg |
