SKU: 6020-NTN

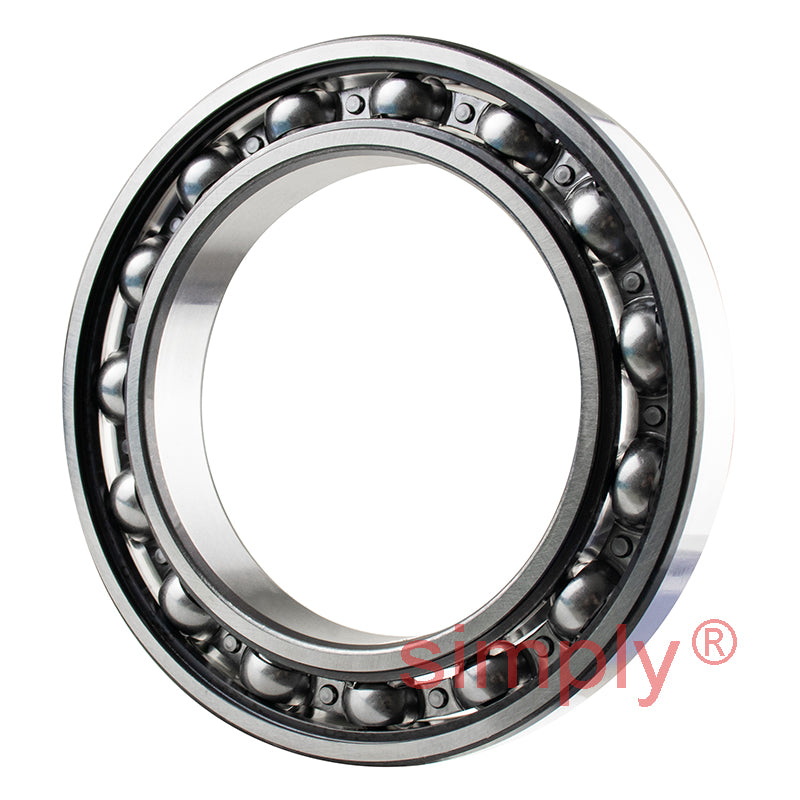

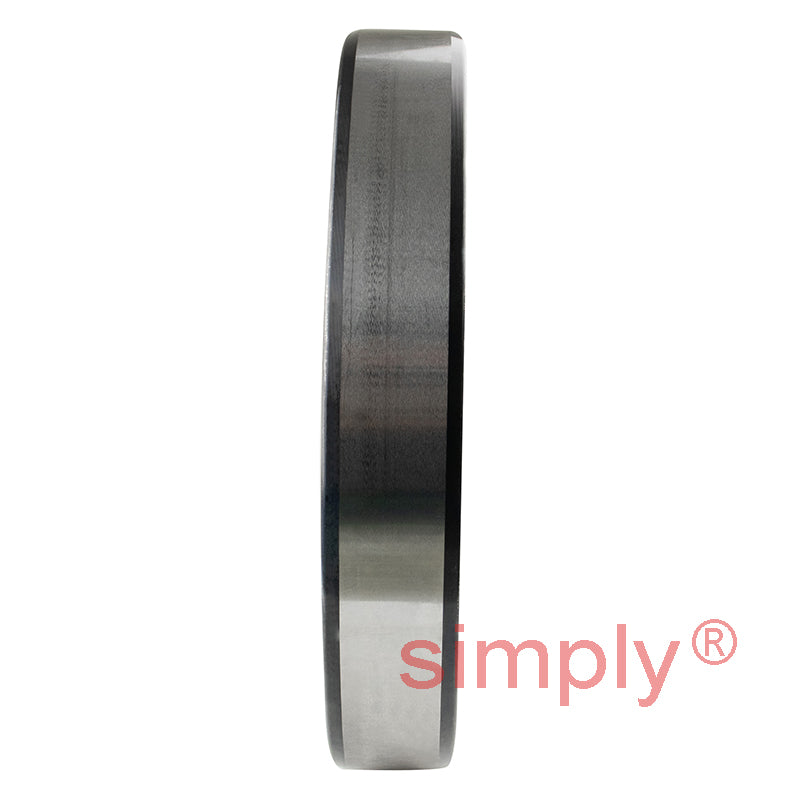

NTN 6020 Open Type Deep Groove Ball Bearing 100x150x24mm
NTN 6020 Open Type Deep Groove Ball Bearing 100x150x24mm
Regular price
€124,74
ex VAT
Regular price
Sale price
€124,74
ex VAT
Equivalent to: 6020CM 9120K 9120 120KS 6120 3L20 EL100 ELL100
In stock
Price Break
3+
€94,79
5+
€89,47
10+
€88,40
25+
€87,34
49+
€86,27
74+
€85,21
99+
€79,88
199+
€78,82
249+
€77,75
499+
€76,69
999+
€74,56
Quantity
Couldn't load pickup availability
Share this product
Description
Description
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution.
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 100mm
- Outside Diameter:
- 150mm
- Width:
- 24mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 100mm |
| D | 150mm |
| B | 24mm |
| r<sub>s</sub> min | 1.5mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 66.5 kN |
| C<sub>or</sub> | 54 kN |
| C<sub>u</sub> | 3.5 kN |
| f<sub>0</sub> | 15.9 kN |
| Grease | 4200 rpm |
| Oil | 5000 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 108mm |
| D<sub>a</sub> Max. | 142mm |
| r<sub>as</sub> Max. | 1.5mm |
| Weight | 1.15 kg |
