SKU: 6020C3-NTN

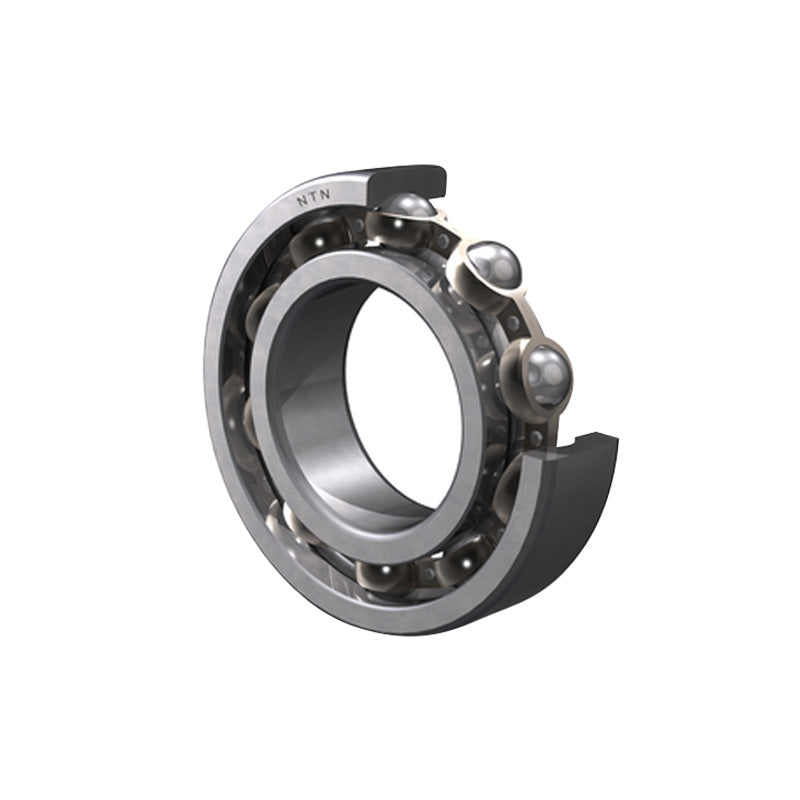

NTN 6020C3 Open Type Deep Groove Ball Bearing 100x150x24mm
NTN 6020C3 Open Type Deep Groove Ball Bearing 100x150x24mm
Regular price
€143,45
ex VAT
Regular price
Sale price
€143,45
ex VAT
Equivalent to: 9120KC3 9120C3 120KSC3 6120C3 3L20C3 EL100C3 ELL100C3
In stock
Price Break
3+
€109,02
5+
€102,89
10+
€101,67
25+
€100,44
49+
€99,22
74+
€97,99
99+
€91,87
199+
€90,64
249+
€89,42
499+
€88,19
999+
€85,74
Quantity
Couldn't load pickup availability
Description
Description
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution.
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 100mm
- Outside Diameter:
- 150mm
- Width:
- 24mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 100mm |
| D | 150mm |
| B | 24mm |
| r<sub>s</sub> min | 1.5mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 66.5 kN |
| C<sub>or</sub> | 54 kN |
| C<sub>u</sub> | 3.5 kN |
| f<sub>0</sub> | 15.9 kN |
| Grease | 4200 rpm |
| Oil | 5000 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 108mm |
| D<sub>a</sub> Max. | 142mm |
| r<sub>as</sub> Max. | 1.5mm |
| Weight | 1.15 kg |
