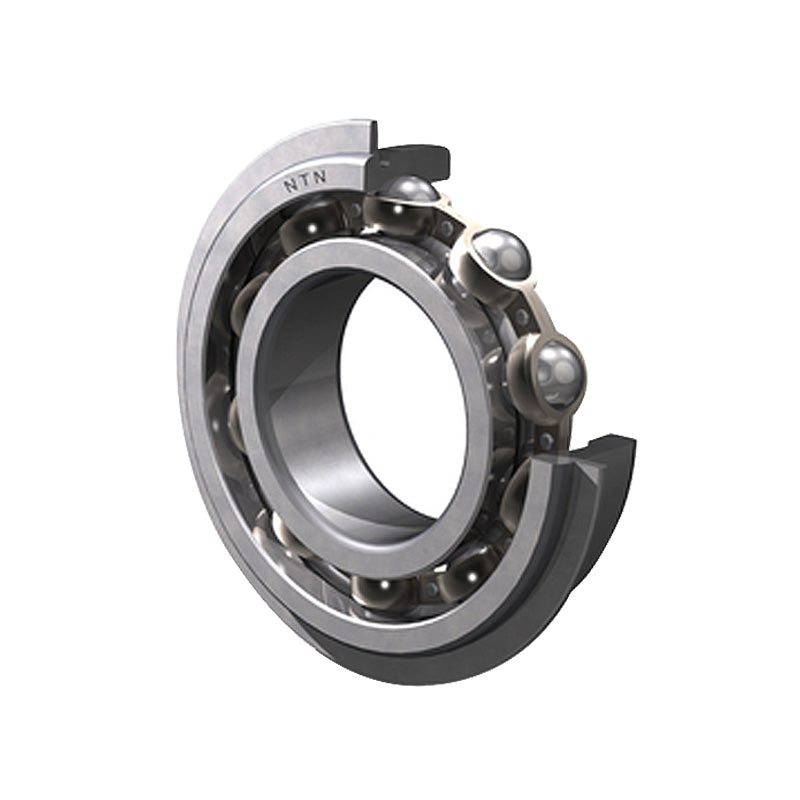

NTN 6020NR Open Type Deep Groove Ball Bearing with Snap Ring 100x150x24mm
NTN 6020NR Open Type Deep Groove Ball Bearing with Snap Ring 100x150x24mm
Regular price
€268,82
ex VAT
Regular price
Sale price
€268,82
ex VAT
Equivalent to: 6020NRCM 9120KG 120KSG 43L20
In stock
Price Break
3+
€204,29
5+
€192,81
10+
€190,52
25+
€188,22
49+
€185,93
74+
€183,63
99+
€172,16
199+
€169,86
249+
€167,56
499+
€165,27
999+
€160,68
Quantity
Couldn't load pickup availability
Description
Description
|
Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 100mm
- Outside Diameter:
- 150mm
- Width:
- 24mm
- Seals / Shields:
- None
- Clearance:
- * Standard
- Snap Ring:
- Snap Ring
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 100mm |
| D | 150mm |
| B | 24mm |
| r<sub>s</sub> min | 1.5mm |
| rNS Min. | 0.5mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 66.5 kN |
| C<sub>or</sub> | 54 kN |
| C<sub>u</sub> | 3.5 kN |
| f<sub>0</sub> | 15.9 kN |
| Grease | 4200 rpm |
| Oil | 5000 rpm |
| --- | Snap Ring Dimensions |
| D<sub>1</sub> Max. | 145.24mm |
| a Max. | 3.71mm |
| b Min. | 3.1mm |
| r<sub>o</sub> Max. | 0.6mm |
| D<sub>2</sub> Max. | 159.7mm |
| f Max. | 2.82mm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 108mm |
| d<sub>a</sub> Max. | 110mm |
| D<sub>a</sub> Max. | 142mm |
| D<sub>X</sub> (approx) | 162mm |
| C<sub>Y</sub> Max. | 6.1mm |
| C<sub>Z</sub> Min. | 2.9mm |
| r<sub>as</sub> Max. | 1.5mm |
| r<sub>Nas</sub> Max. | 0.5mm |
| Weight | 1.15 kg |
