SKU: 6020ZNR-NTN

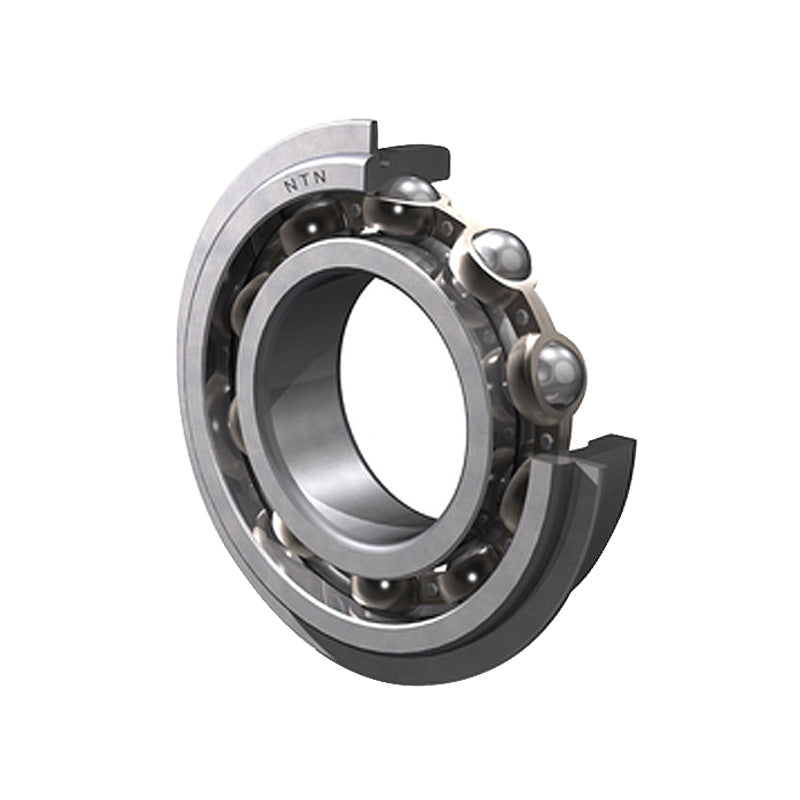

NTN 6020ZNR One Metal Shield Type Deep Groove Ball Bearing with Snap Ring 100x150x24mm
NTN 6020ZNR One Metal Shield Type Deep Groove Ball Bearing with Snap Ring 100x150x24mm
Regular price
€173,13
ex VAT
Regular price
Sale price
€173,13
ex VAT
In stock
Price Break
3+
€131,57
5+
€124,18
10+
€122,70
25+
€121,22
49+
€119,74
74+
€118,26
99+
€110,87
199+
€109,39
249+
€107,92
499+
€106,44
999+
€103,48
Quantity
Couldn't load pickup availability
Description
Description
This bearing has one sided metal shielded and one open side.
|
Metal Shielded Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured with metal shields offering some protection against mechanical damage and serving to retain the lubricant in the sealed for life bearing. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 100mm
- Outside Diameter:
- 150mm
- Width:
- 24mm
- Seals / Shields:
- Open and Metal Shielded
- Clearance:
- * Standard
- Snap Ring:
- Snap Ring
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 100mm |
| D | 150mm |
| B | 24mm |
| r<sub>s</sub> min | 1.5mm |
| rNS Min. | 0.5 |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 66.5 Kn |
| C<sub>or</sub> | 54 kN |
| C<sub>u</sub> | 3.5 kN |
| f<sub>0</sub> | 15.9 kN |
| Grease | 4200 rpm |
| Oil | 5000 rpm |
| --- | Snap Ring Dimensions |
| D<sub>1</sub> Max. | 145.24 |
| a Max. | 3.71 |
| b Min. | 3.1 |
| r<sub>o</sub> Max. | 0.6 |
| D<sub>2</sub> Max. | 159.7 |
| f Max. | 2.82 |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 108mm |
| d<sub>a</sub> Max. | 110mm |
| D<sub>a</sub> Max. | 142mm |
| D<sub>X</sub> (approx) | 162 |
| C<sub>Y</sub> Max. | 6.1 |
| C<sub>Z</sub> Min. | 2.9 |
| r<sub>as</sub> Max. | 1.5mm |
| r<sub>Nas</sub> Max. | 0.5 |
| Weight | 1.15 kg |
