SKU: 6021LLUC3/5K-NTN

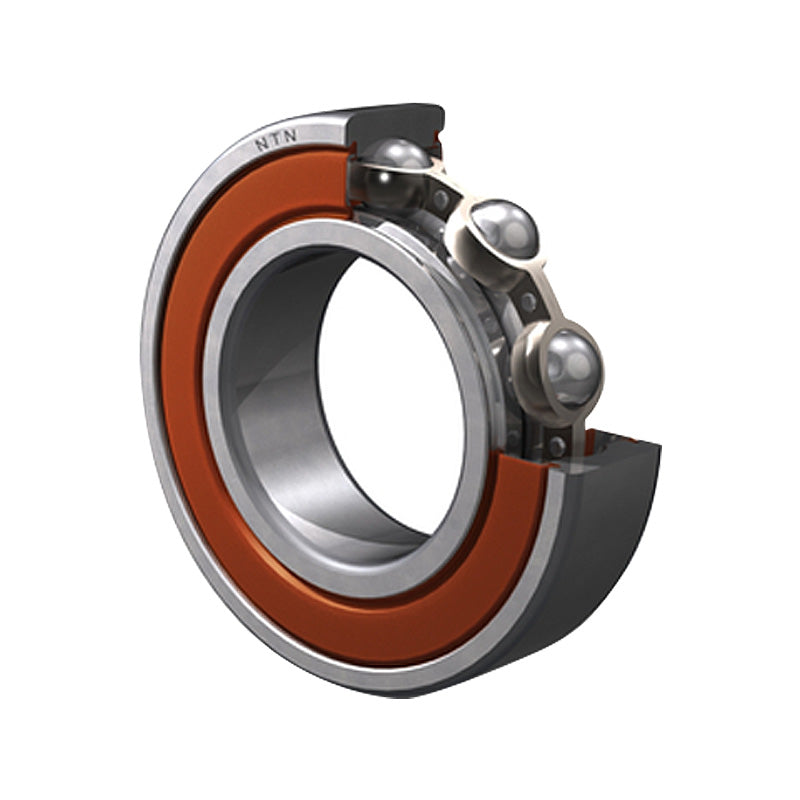

NTN 6021LLUC3/5K Contact Rubber Sealed Type Deep Groove Ball Bearing 105x160x26mm
Equivalent to: 6021NSEC3 6021DUC3 6021RSC3 6021RSHC3 6021PC3 6021RSRC3 6021LUC3 60212NSEC3 6021DDUC3 60212RSC3 6021-2RSC3 60212RS1C3 60212RSHC3 6021PPC3 60212RSRC3 6021LLUC3 6021RS2C3 60212RS2C3 60212RSLC3 6021LFSC3 6021EEC3 EL1052RSC3 9121PPC3 121KSZZC3 993L21C3 6121KKC3 10L105C3
In stock
Price Break
Couldn't load pickup availability
Description
Contact Rubber Sealed Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of its simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two contact rubber seals in contact with the inner ring.
Benefits: High-running accuracy and high-speed operation, excellent grease sealing at low speeds, excellent protection against dust and water.
Note: These bearings are supplied pre-filled with grease, "/5k" refers to the grease: Multemp SRL (-40 deg C to +150 deg C)
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 105mm
- Outside Diameter:
- 160mm
- Width:
- 26mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- C3
Technical
| --- | Bearing dimensions |
|---|---|
| d | 105mm |
| D | 160mm |
| B | 26mm |
| r<sub>s</sub> min | 2mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 80.5 kN |
| C<sub>or</sub> | 65.5 kN |
| C<sub>u</sub> | 4.15 kN |
| f<sub>0</sub> | 15.8 kN |
| Speed | 2400 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 114mm |
| d<sub>a</sub> Max. | 119mm |
| D<sub>a</sub> Max. | 151mm |
| r<sub>as</sub> Max. | 2mm |
| Weight Kg | 1.59 kg |
