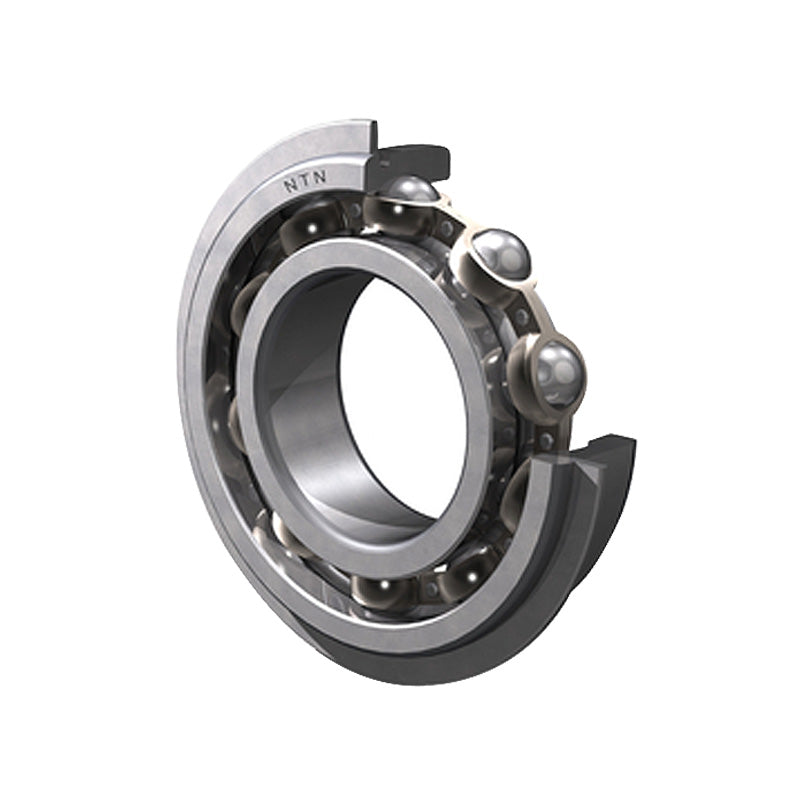

NTN 6022NR Open Type Deep Groove Ball Bearing with Snap Ring 110x170x28mm
NTN 6022NR Open Type Deep Groove Ball Bearing with Snap Ring 110x170x28mm
Regular price
€346,66
ex VAT
Regular price
Sale price
€346,66
ex VAT
Equivalent to: 6022NRCM 9122KG 122KSG 43L22
In stock
Price Break
3+
€263,45
5+
€248,65
10+
€245,69
25+
€242,73
49+
€239,77
74+
€236,81
99+
€222,01
199+
€219,05
249+
€216,09
499+
€213,13
999+
€207,21
Quantity
Couldn't load pickup availability
Description
Description
|
Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 110mm
- Outside Diameter:
- 170mm
- Width:
- 28mm
- Seals / Shields:
- None
- Clearance:
- * Standard
- Snap Ring:
- Snap Ring
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 110mm |
| D | 170mm |
| B | 28mm |
| r<sub>s</sub> min | 2mm |
| rNS Min. | 0.5mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 91 kN |
| C<sub>or</sub> | 73 kN |
| C<sub>u</sub> | 4.55 kN |
| f<sub>0</sub> | 15.6 kN |
| Grease | 3800 rpm |
| Oil | 4500 rpm |
| --- | Snap Ring Dimensions |
| D<sub>1</sub> Max. | 163.65mm |
| a Max. | 3.71mm |
| b Min. | 3.5mm |
| r<sub>o</sub> Max. | 0.6mm |
| D<sub>2</sub> Max. | 182.9mm |
| f Max. | 3.1mm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 119mm |
| d<sub>a</sub> Max. | 126mm |
| D<sub>a</sub> Max. | 161mm |
| D<sub>X</sub> (approx) | 185mm |
| C<sub>Y</sub> Max. | 6.4mm |
| C<sub>Z</sub> Min. | 3.1mm |
| r<sub>as</sub> Max. | 2mm |
| r<sub>Nas</sub> Max. | 0.5mm |
| Weight | 1.96 kg |
