SKU: 6030ZZC3/5K-NTN

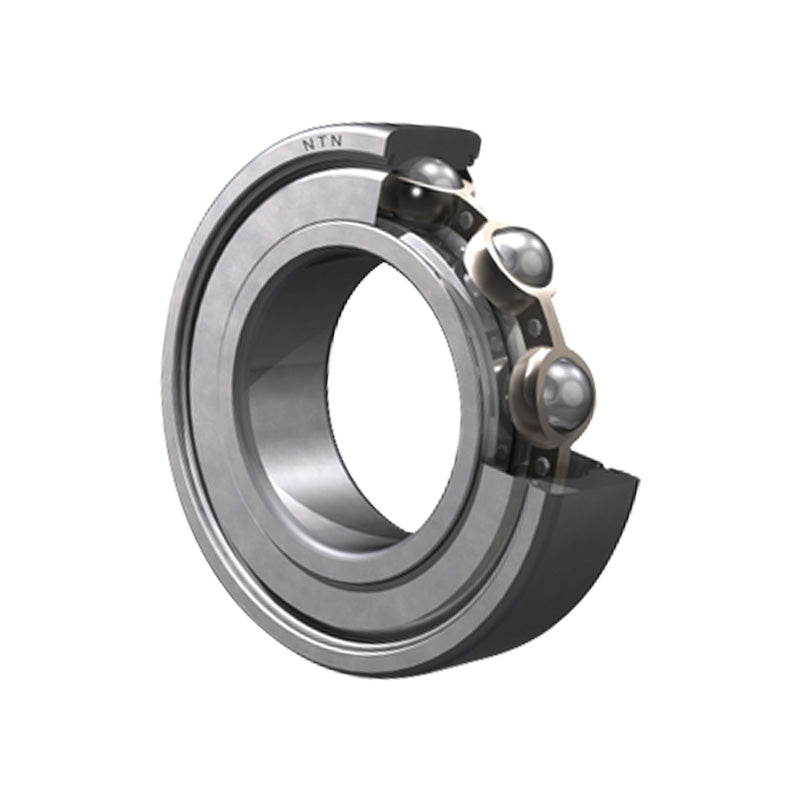

NTN 6030ZZC3/5K Metal Shielded Type Deep Groove Ball Bearing 150x225x35mm

NTN 6030ZZC3/5K Metal Shielded Type Deep Groove Ball Bearing 150x225x35mm
Regular price €561,82 ex VAT
Regular price Sale price €561,82 ex VAT
Sale Sold out

Equivalent to: 6030ZZC3 60302ZC3 6030ZZC3 60302ZRC3 6030ZZEC3 6030FFC3 6030DDC3 6030DDCC3 6030KDDCC3 EL1502ZC3 EL150ZZC3 9130KDDC3 9130FFC3 130KSFFC3 773L30C3 6130PPC3

In stock

Price Break
3+ €426,96
5+ €402,97
10+ €398,18
25+ €393,38
49+ €388,58
74+ €383,78
99+ €359,80
199+ €355,00
249+ €350,20
499+ €345,41
999+ €335,81
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Bearing dimensions
d 150mm
D 225mm
B 35mm
r<sub>s</sub> min 2.1mm
--- Loads angles and speeds
C<sub>r</sub> 139 kN
C<sub>or</sub> 126 kN
C<sub>u</sub> 6.55 kN
f<sub>0</sub> 15.9 kN
Grease 2800 rpm
Oil 3200 rpm
--- Fitting Dimensions
d<sub>a</sub> Min. 161mm
d<sub>a</sub> Max. 169mm
D<sub>a</sub> Max. 214mm
r<sub>as</sub> Max. 2mm
Weight 4.08 kg
