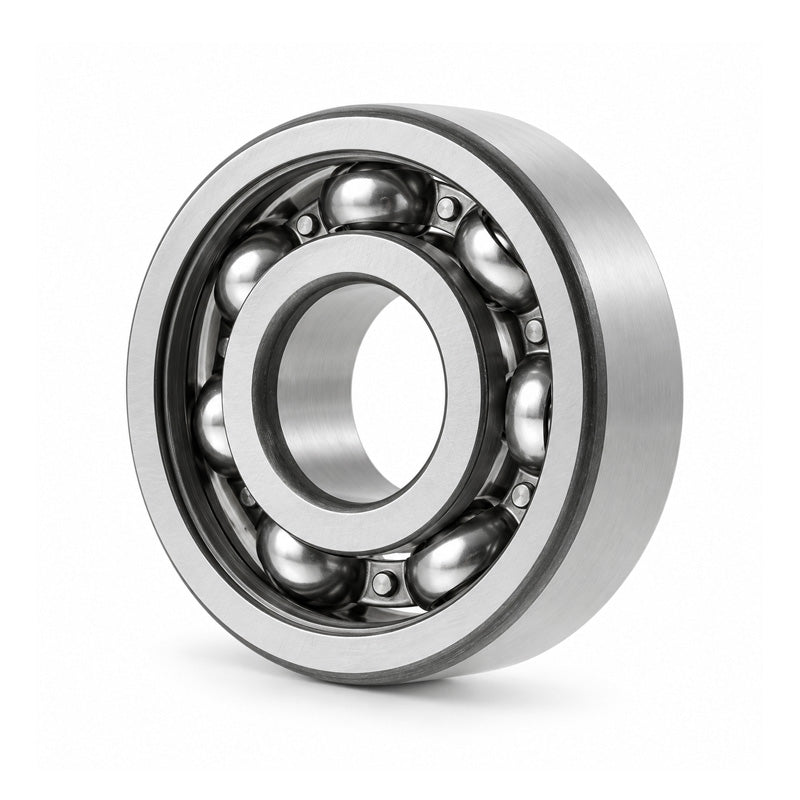

NTN 6038 Open Type Deep Groove Ball Bearing 190x290x46mm
NTN 6038 Open Type Deep Groove Ball Bearing 190x290x46mm
Regular price
€609,52
ex VAT
Regular price
Sale price
€609,52
ex VAT
Equivalent to: 6038CM 9138K 9138 138KS 6138 3L38 EL190 ELL190
In stock
Price Break
3+
€463,21
5+
€437,19
10+
€431,98
25+
€426,78
49+
€421,57
74+
€416,37
99+
€390,35
199+
€385,14
249+
€379,94
499+
€374,73
999+
€364,32
Quantity
Couldn't load pickup availability
Share this product
Description
Description
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution.
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 190mm
- Outside Diameter:
- 290mm
- Width:
- 46mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 190mm |
| D | 290mm |
| B | 46mm |
| r<sub>s</sub> min | 2.1mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 218 kN |
| C<sub>or</sub> | 215 kN |
| C<sub>u</sub> | 10.1 kN |
| f<sub>0</sub> | 15.8 kN |
| Grease | 2100 rpm |
| Oil | 2500 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 201mm |
| D<sub>a</sub> Max. | 279mm |
| r<sub>as</sub> Max. | 2mm |
| Weight | 9.18 kg |
