SKU: 608-2RS-CDX

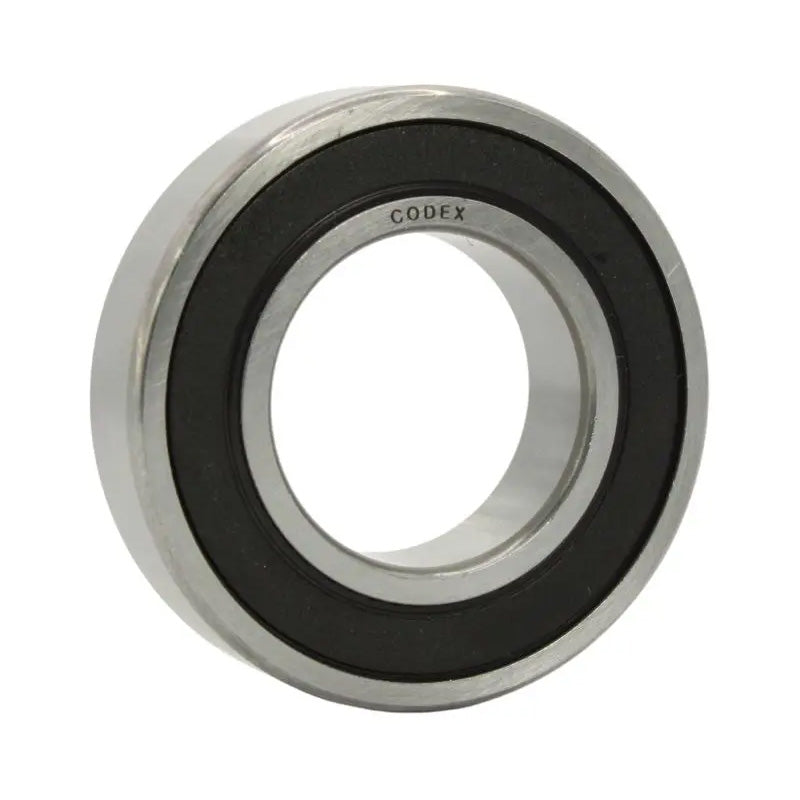

Codex 6082RS Rubber Sealed Deep Groove Ball Bearing 8x22x7mm
Codex 6082RS Rubber Sealed Deep Groove Ball Bearing 8x22x7mm
Regular price
€4,13
ex VAT
Regular price
Sale price
€4,13
ex VAT
Equivalent to: 6082RS 6082RSH 6082RS1 6082RSR 6082RSL 608LFS 608EE 608DU 608LLU EL82RS 608PP
In stock
Price Break
4+
€3,14
10+
€2,96
20+
€2,93
30+
€2,89
50+
€2,86
75+
€2,82
100+
€2,65
200+
€2,61
250+
€2,58
500+
€2,54
1000+
€2,47
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing |
- Brand / Quality:
- Codex - Good Quality
- Inside Diameter:
- 8mm
- Outside Diameter:
- 22mm
- Width:
- 7mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
Technical
| d | 8mm |
|---|---|
| D | 22mm |
| B | 7mm |
| Dynamic load C | 3.45 kN |
| Static load Co | 1.37 kN |
| Fatigue load limit Pu | 0.057 |
| Reference speed | 75000 rpm |
| Limiting speed | 22000 rpm |
| Weight | 0.012 kg |
| d1 | -mm |
| D2 | 19.2mm |
| r1r2 | 0.3mm |
| da min | 10mm |
| Da max | 20mm |
| ra max | 0.3mm |
| Calc factor kr | 0.025 |
| Calc factor Cor f0 | 12 |
