SKU: 6092MB-SKF

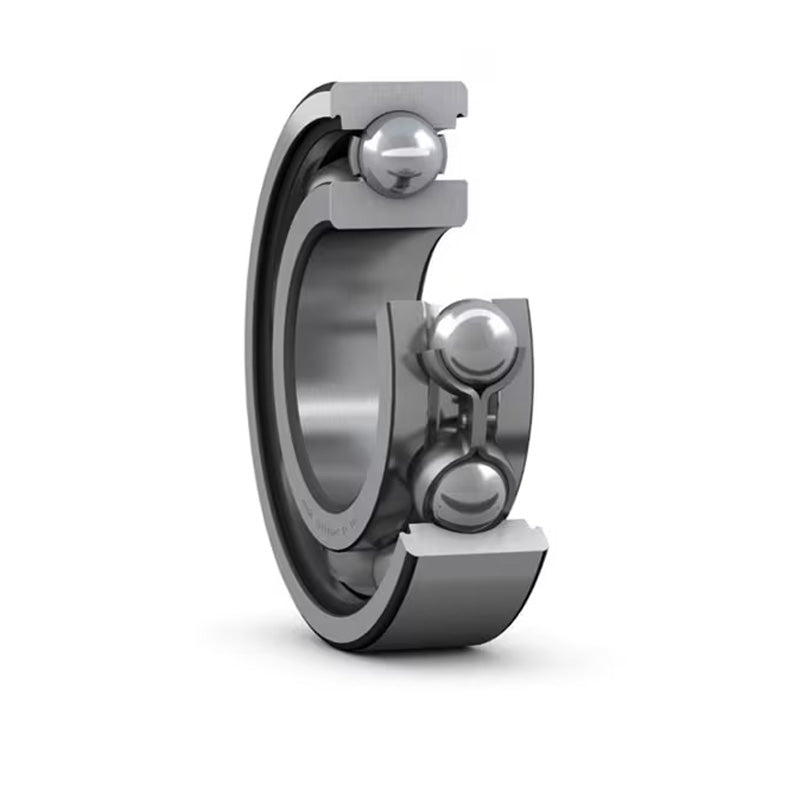

SKF 6092MB Open Type Thin Section Deep Groove Ball Bearing 460x680x100mm
SKF 6092MB Open Type Thin Section Deep Groove Ball Bearing 460x680x100mm
Out of stock
Share this product
Description
Description
|
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 460mm
- Outside Diameter:
- 680mm
- Width:
- 100mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 460mm |
|---|---|
| D | 680mm |
| B | 100mm |
| Dynamic load | 582 kN |
| Static load | 1060 kN |
| Fatigue load limit Pu | 19 kN |
| Reference speed | 1800 rpm |
| Limiting speed | 1500 rpm |
| Weight | 120 kg |
| d1 | 528mm |
| D1 | 614mm |
| D2 | 6mm |
| r1r2 min | 483mm |
| da min | 657mm |
| Da max | 5mm |
| ra max | 0.025mm |
| Calculation factor kr | 16 |
| Calculation factor Cor | N/A |
Reviews
Reviews
☆☆☆☆☆ (0 total reviews)
