SKU: 60x74x12_WP4_NAK

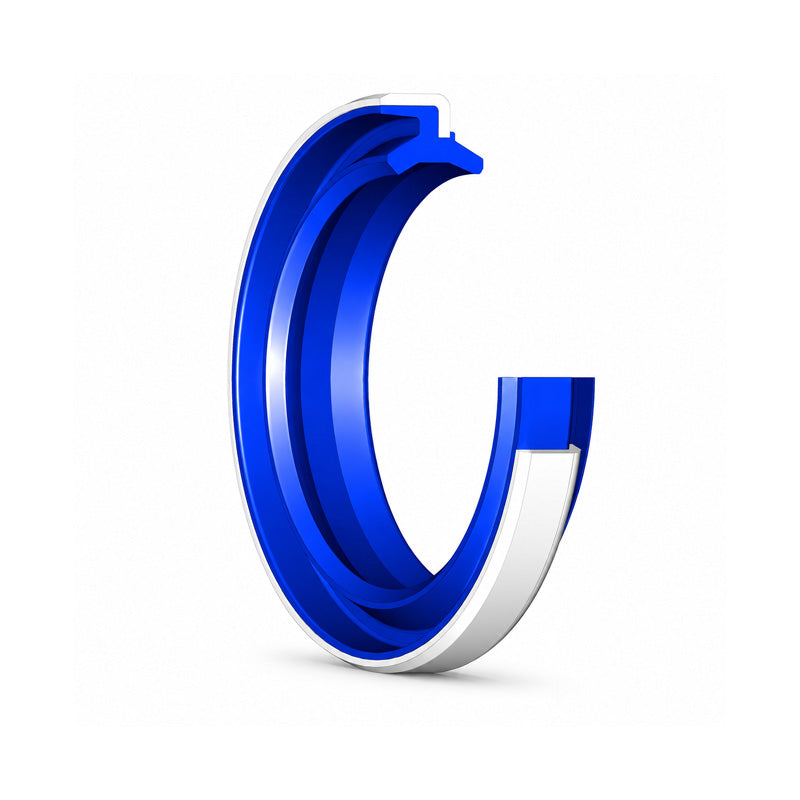

NAK 60x74x12mm WP4 Polyurethane Wiper Seal - Allow 7-10 Days
- Regular price
- €5.36 ex VAT
- Sale price
- €5,36
- Regular price
-
Not in stock
Quantity Price Breaks
10
€4.77
19
€4.50
29
€4.45
39
€4.40
49
€4.34
74
€4.29
99
€4.02
199
€3.97
249
€3.91
499
€3.86
999
€3.75
SKU:
60x74x12_WP4_NAK
NAK 60x74x12mm WP4 Polyurethane Wiper Seal - Allow 7-10 Days
- Regular price
- €5.36 ex VAT
- Sale price
- €5,36
- Regular price
-
Description
NAK WP4 Wiper Seals: WP4 wiper seals are heavy-duty dust-exclusion seals designed to protect hydraulic and pneumatic systems from external contamination. This seal is particularly suitable for harsh environments and demanding operating conditions. The WP4 wiper seal helps prolong the life of internal seals, reduce wear, and maintain system performance even under extensive use.
Benefits: Reliable, superior dust exclusion, excellent groove retention

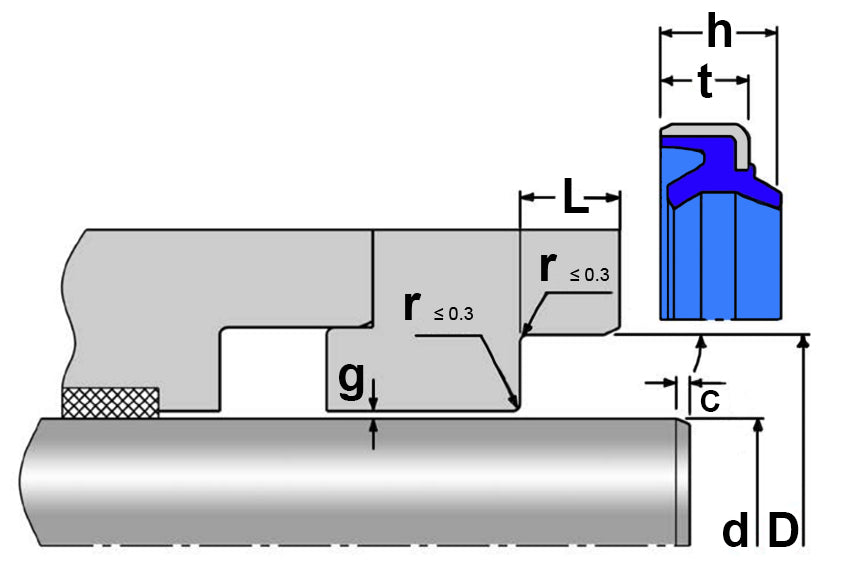

Technical
| d | = | 60mm |
| D | = | 74mm |
| L | = | 8mm |
| t | = | 8mm |
| c | = | 3.5mm |
| Inside Diameter Tolerance | = | f8 |
| Outside Diameter Tolerance | = | H8 |
| Length Tolerance | = | 0.2mm |
| Running Speed v | = | 1 m/s |
| Temperature | = | -40 Deg C to +100 Deg C |
| Colour | = | Blue |
