SKU: 61807-2Z/C3-EU

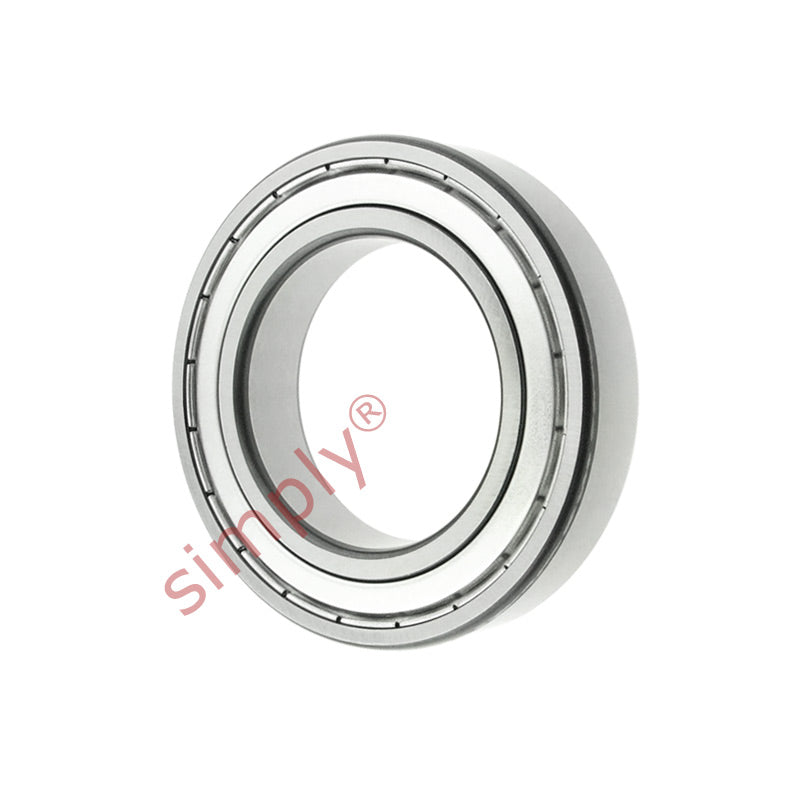

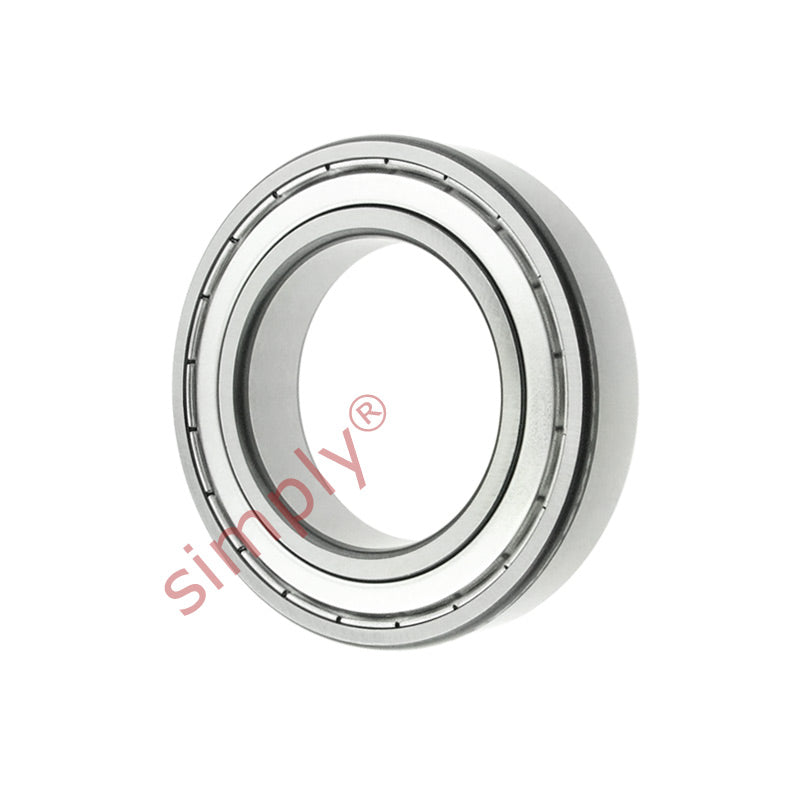

6807ZZC3 Budget Metal Shielded Thin Section Deep Groove Ball Bearing 35x47x7mm
Equivalent to: 61807ZZEC3 61807ZZC3 61807.2ZC3 61807KDDC3 61807DDC3 61807FFC3 6807ZZEC3 6807ZZC3 68072ZC3 6807.2ZC3 6807KDDC3 6807DDC3 68072ZRC3 6807FFC3 618072ZRC3 618072ZRC3 61807ZZEC3 61807ZZC3
In stock
Price Break
Couldn't load pickup availability
Share this product
Description
|
Budget Thin Section Metal Shielded Deep Groove Ball Bearings : One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 47mm
- Width:
- 7mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- C3
Technical
| d | 35mm |
|---|---|
| D | 47mm |
| B | 7mm |
| r min | 0.3mm |
| Dynamic load Cr | 4.75 kN |
| Static load Cor | 3.85 kN |
| Speed in grease | 13000 rpm |
| Speed in oil | 16000 rpm |
