SKU: 61809-ZZ-CDX

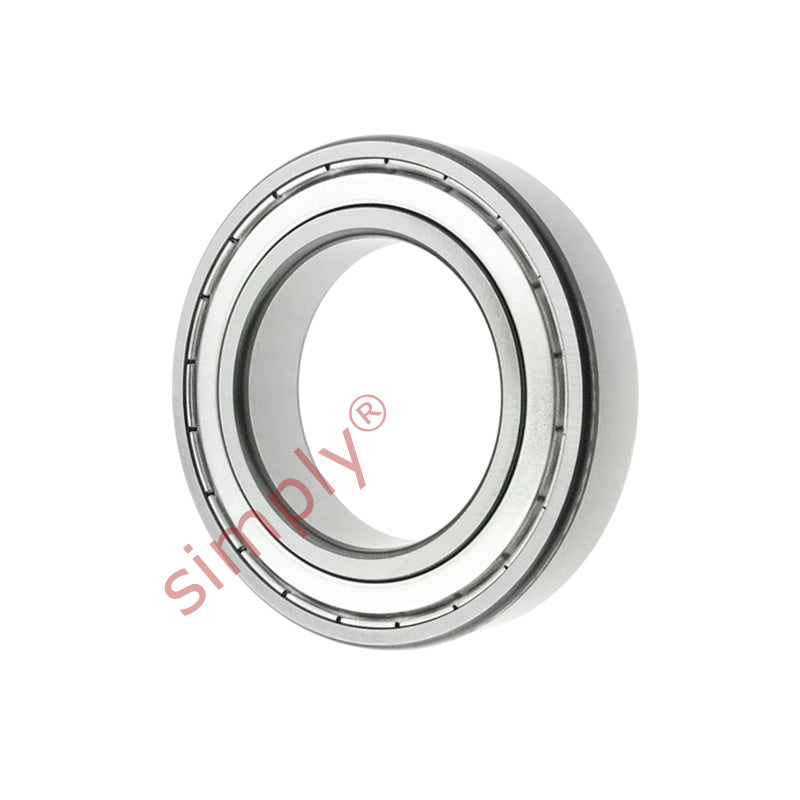

Codex 61809ZZ Metal Shielded Thin Section Deep Groove Ball Bearing 45x58x7mm
Equivalent to: 61809ZZ 618092Z 618092ZR 61809ZZE 61809FF 61809DD 61809DDC 61809KDDC EL45ZZ EL452Z
In stock
Price Break
Couldn't load pickup availability
Share this product
Description
|
Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
- Brand / Quality:
- Codex - Good Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 58mm
- Width:
- 7mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
| d | 45mm |
|---|---|
| D | 58mm |
| B | 7mm |
| Dynamic Load | 6.63 kN |
| Static Load | 6.1 kN |
| Fatigue Load Limit Pu | 0.26 |
| Reference Speed | 22000 rpm |
| Limiting Speed | 6700 rpm |
| Weight | 0.00004kg |
| d1 | 49.1mm |
| D2 | 55.4mm |
| r1r2 min | 0.3mm |
| da min | 47mm |
| Da max | 56mm |
| ra max | 0.3 |
| Calc factor kr | 0.015 |
| Calc factor Cor f0 | 17 |
