SKU: 61820-2RS1/C3-SKF

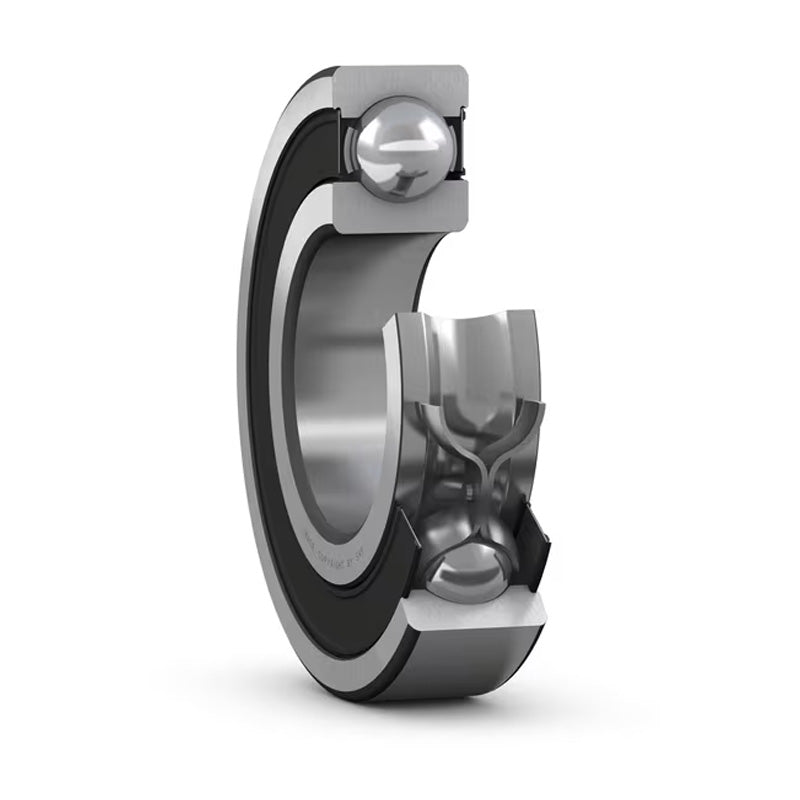

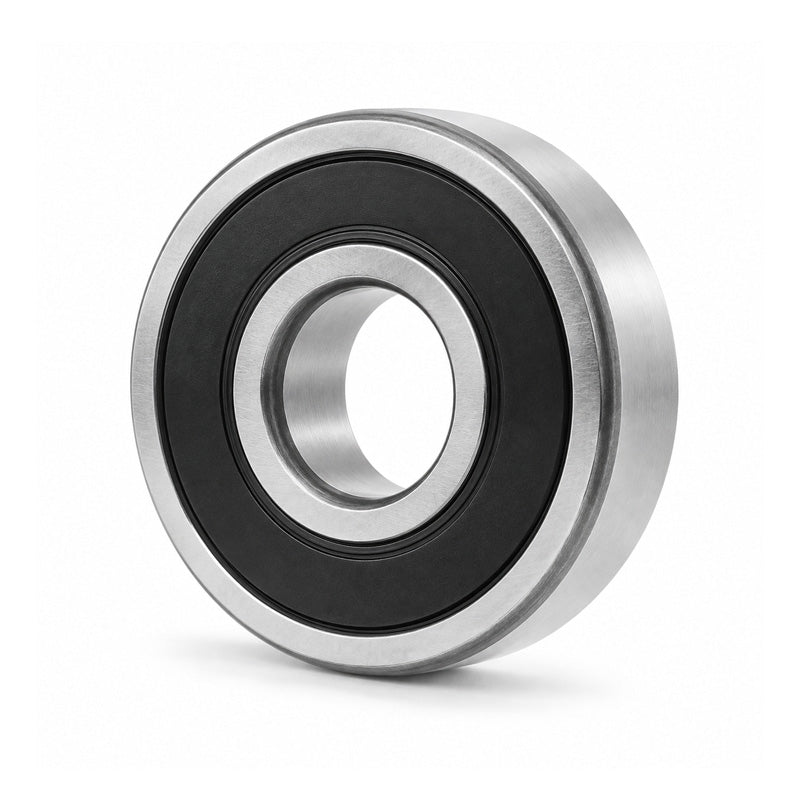

SKF 618202RS1C3 Rubber Sealed Thin Section Deep Groove Ball Bearing 100x125x13mm
Equivalent to: 61820NSEC3 61820DUC3 61820RSC3 61820RSHC3 61820PC3 61820RSRC3 61820LUC3 6820NSEC3 6820DUC3 6820RSC3 6820RSHC3 6820PC3 6820RSRC3 6820LUC3 618202NSEC3 61820DDUC3 618202RSC3 618202RSHC3 61820PPC3 618202RSRC3 61820LLU 68202NSEC3 6820DDUC3 68202RSC3 68202RS1C3 68202RSHC3 6820PPC3 68202RSRC3 6820LLUC3
Out of stock
Description
|
Thin Section Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 100mm
- Outside Diameter:
- 125mm
- Width:
- 13mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- C3
Technical
| d | 100mm |
|---|---|
| D | 125mm |
| B | 13mm |
| Dynamic load C | 19.9 kN |
| Static load Co | 24 kN |
| Fatigue load limit Pu | 0.95 kN |
| Reference speed | 10000 rpm |
| Limiting speed | 3000 rpm |
| Weight | 0.31 kg |
| d1 | 108mm |
| D2 | 119mm |
| r1r2 min | 1mm |
| da min | 105mm |
| Da max | 120mm |
| ra max | 1mm |
| Calculation factor kr | 0.015 |
| Calculation factor f0 | 17 |
