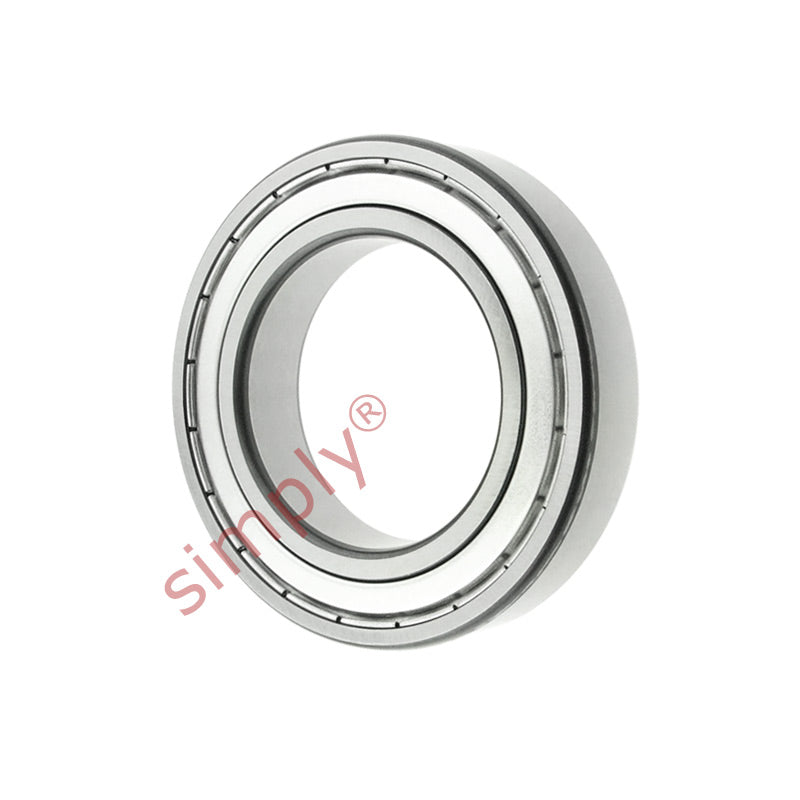

6824ZZ Budget Metal Shielded Thin Section Deep Groove Ball Bearing 120x150x16mm

SKU: 61824-2Z-EU

6824ZZ Budget Metal Shielded Thin Section Deep Groove Ball Bearing 120x150x16mm

€65.84 ex VAT
€65,84
ex VAT
Equivalent to: 61824ZZE 61824ZZ 61824.2Z 61824KDD 61824DD 61824FF 6824ZZE 6824ZZ 68242Z 6824.2Z 6824KDD 6824DD 68242ZR 6824FF 618242ZR 61824ZZE 61824ZZ 618242ZR 618242RS2
In stock

Quantity Price Breaks

4 €58.60
10 €55.31
20 €54.65
30 €53.99
50 €53.33
75 €52.67
100 €49.38
201 €48.72
250 €48.06
500 €47.40
1000 €46.09
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
6824ZZ Budget Metal Shielded Thin Section Deep Groove Ball Bearing 120x150x16mm
SKU: 61824-2Z-EU

6824ZZ Budget Metal Shielded Thin Section Deep Groove Ball Bearing 120x150x16mm

€65.84 ex VAT
€65,84
ex VAT

Description

Budget Thin Section Metal Shielded Deep Groove Ball Bearings : One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing.
Shields can be removed for applications that only require 1 shield
Benefits: Provides light mechanical protection, limits moisture and dirt ingress, lubricated for life, cost effective solution

Technical

d = 120mm
D = 150mm
B = 16mm
r min = 1mm
Dynamic load Cr = 29 kN
Static load Cor = 33 kN
Speed in grease = 4000 rpm
Speed in oil = 4700 rpm
