SKU: 619/8-2Z/C3-SKF

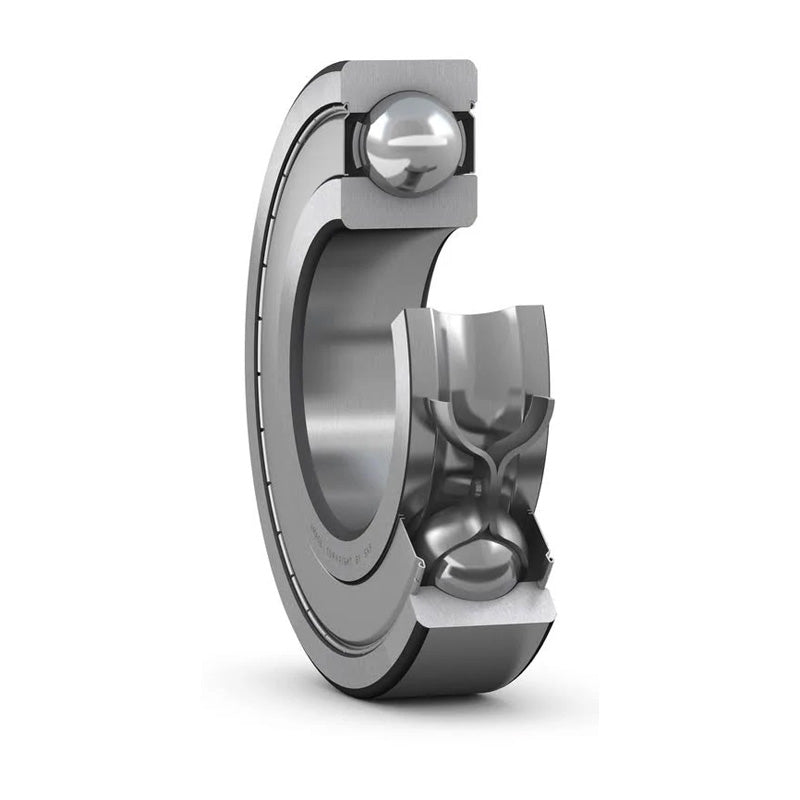

SKF 619/82ZC3 Metal Shielded Deep Groove Ball Bearing 8x19x6mm
SKF 619/82ZC3 Metal Shielded Deep Groove Ball Bearing 8x19x6mm
Equivalent to: 619/8ZZC3 6982ZC3 698ZZC3 61982Z 619/82ZRC3
Out of stock
Share this product
Description
Description
|
Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 8mm
- Outside Diameter:
- 19mm
- Width:
- 6mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- C3
Technical
Technical
| d | 8mm |
|---|---|
| D | 19mm |
| B | 6mm |
| Dynamic load C | 1.9 kN |
| Static load Co | 0.74 kN |
| Fatigue load limit Pu | 0.031 kN |
| Reference speed | 80000 rpm |
| Limiting speed | 40000 rpm |
| Weight | 0.0071 kg |
| d1 | 11.1mm |
| d2 | 0mm |
| D2 | 17mm |
| r1r2 min | 0.3mm |
| da min | 10mm |
| da max | 0mm |
| Da max | 17mm |
| ra max | 0.3mm |
| Calculation factor kr | 0.02 |
| Calculation factor f0 | 10 |
