SKU: 61903-2RS-CDX

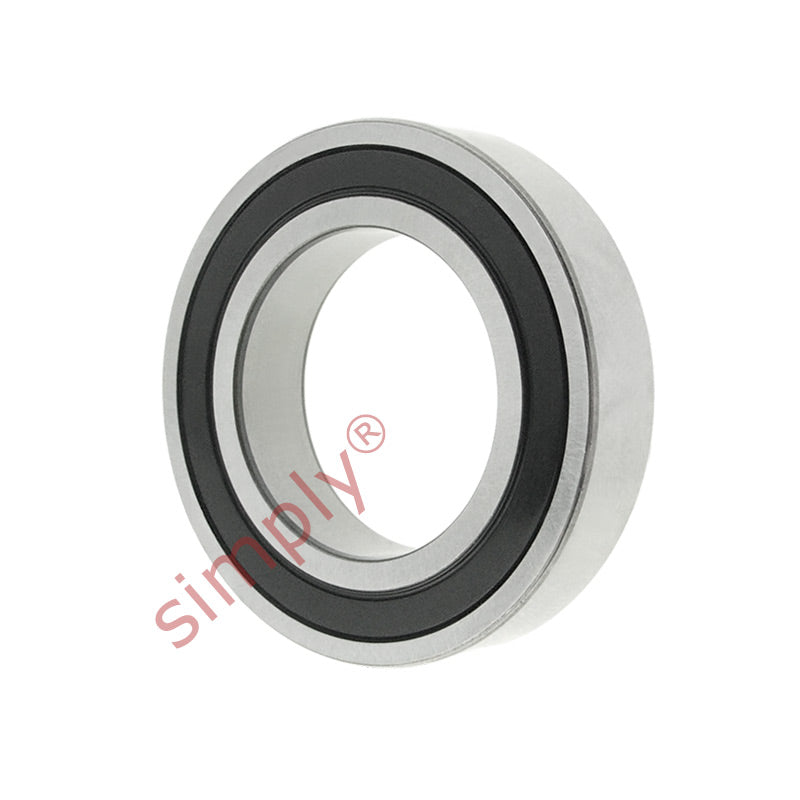

Codex 619032RS Rubber Sealed Thin Section Deep Groove Ball Bearing 17x30x7mm
Equivalent to: 619032RS 619032RSH 619032RS1 619032RSR 619032RSL 61903LFS 61903EE 61903DU 61903LLU EL172RS 61903PP
In stock
Price Break
Couldn't load pickup availability
Share this product
Description
Thin Section Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing.
Seals can be easily removed for applications that only require 1 seal.
Benefits: Prevents moisture and dirt getting into the bearing, lubricated for life, cost effective solution
Note: If your bearing has the code 6903/61903 on the races and/or seals but has an 18mm bore, then you may need a [MR183072RS]
- Brand / Quality:
- Codex - Good Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 30mm
- Width:
- 7mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
| d | 17mm |
|---|---|
| D | 30mm |
| B | 7mm |
| Dynamic Load | 4.62 kN |
| Static Load | 2.55 kN |
| Fatigue Load limit Pu | 0.108 |
| Reference Speed | 50000 rpm |
| Limiting speed | 14000 rpm |
| Weight | 0.018kg |
| d1 | -mm |
| D2 | 27.8mm |
| r1r2 | 0.3mm |
| da min | 19mm |
| Da max | 28mm |
| ra max | 0.3mm |
| Calc Factor kr | 0.02 |
| Calc Factor Cor f0 | 15 |
