SKU: 61903-ZZ-CDX

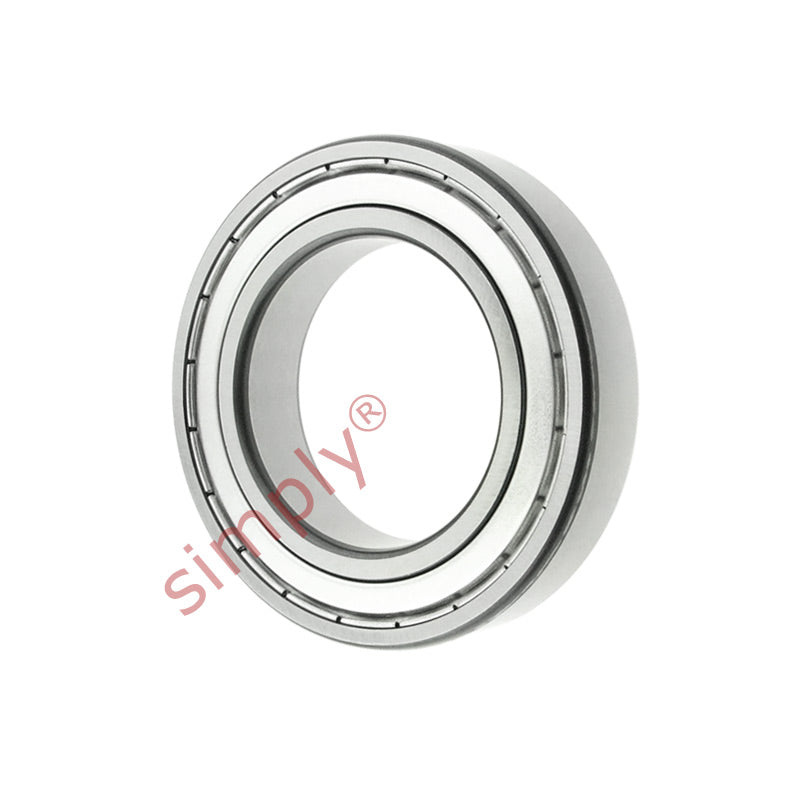

Codex 61903ZZ Metal Shielded Thin Section Deep Groove Ball Bearing 17x30x7mm
Equivalent to: 61903ZZ 619032Z 619032ZR 61903ZZE 61903FF 61903DD 61903DDC 61903KDDC EL17ZZ EL172Z
In stock
Price Break
Couldn't load pickup availability
Share this product
Description
|
Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
- Brand / Quality:
- Codex - Good Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 30mm
- Width:
- 7mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
| d | 17mm |
|---|---|
| D | 30mm |
| B | 7mm |
| Dynamic Load | 4.62 kN |
| Static Load | 2.55 kN |
| Fatigue Load Limit Pu | 0.108 |
| Reference Speed | 50000 rpm |
| Limiting Speed | 26000 rpm |
| Weight | 0.018kg |
| d1 | 20.4mm |
| D2 | 27.8mm |
| r1r2 min | 0.3mm |
| da min | 19mm |
| Da max | 28mm |
| ra max | 0.3 |
| Calc factor kr | 0.02 |
| Calc factor Cor f0 | 15 |
