SKU: 61906-2RS-CDX

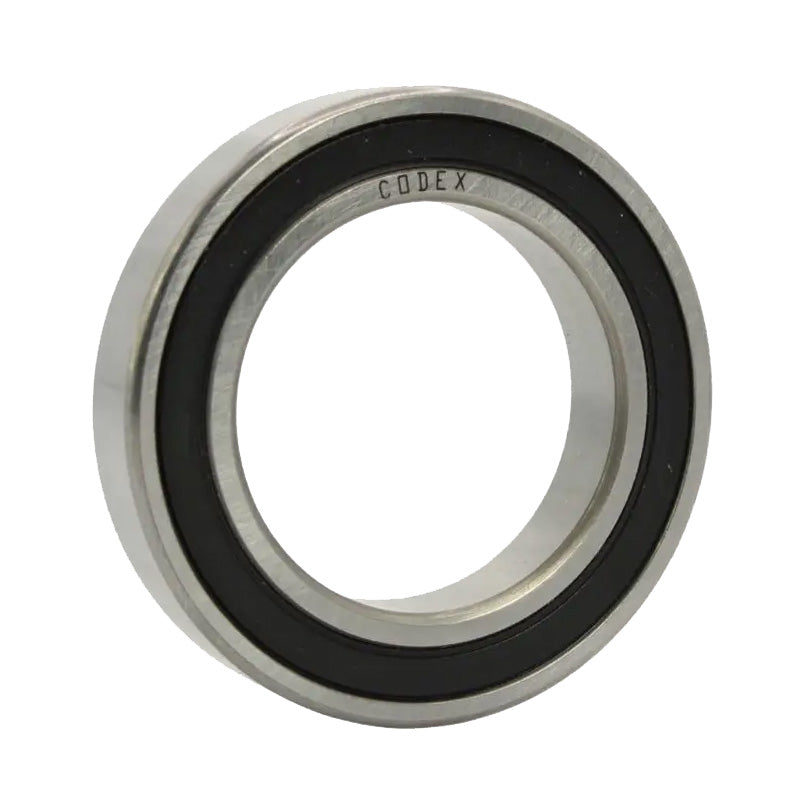

Codex 619062RS Rubber Sealed Thin Section Deep Groove Ball Bearing 30x47x9mm
Codex 619062RS Rubber Sealed Thin Section Deep Groove Ball Bearing 30x47x9mm
Regular price
€13,50
ex VAT
Regular price
Sale price
€13,50
ex VAT
Equivalent to: 619062RS 619062RSH 619062RS1 619062RSR 619062RSL 61906LFS 61906EE 61906DU 61906LLU 61906PP EL302RS
In stock
Price Break
4+
€10,26
10+
€9,68
20+
€9,57
30+
€9,45
50+
€9,34
75+
€9,22
100+
€8,64
200+
€8,53
250+
€8,41
500+
€8,30
1000+
€8,07
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
Thin Section Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
- Brand / Quality:
- Codex - Good Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 47mm
- Width:
- 9mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
Technical
| d | 30mm |
|---|---|
| D | 47mm |
| B | 9mm |
| Dynamic Load | 7.28 kN |
| Static Load | 4.55 kN |
| Fatigue Load limit Pu | 0.212 |
| Reference Speed | 30000 rpm |
| Limiting speed | 8500 rpm |
| Weight | 0.051kg |
| d1 | -mm |
| D2 | 42.8mm |
| r1r2 | 0.3mm |
| da min | 32mm |
| Da max | 45mm |
| ra max | 0.3mm |
| Calc Factor kr | 0.02 |
| Calc Factor Cor f0 | 14 |
