SKU: 61912-2RSR-FAG

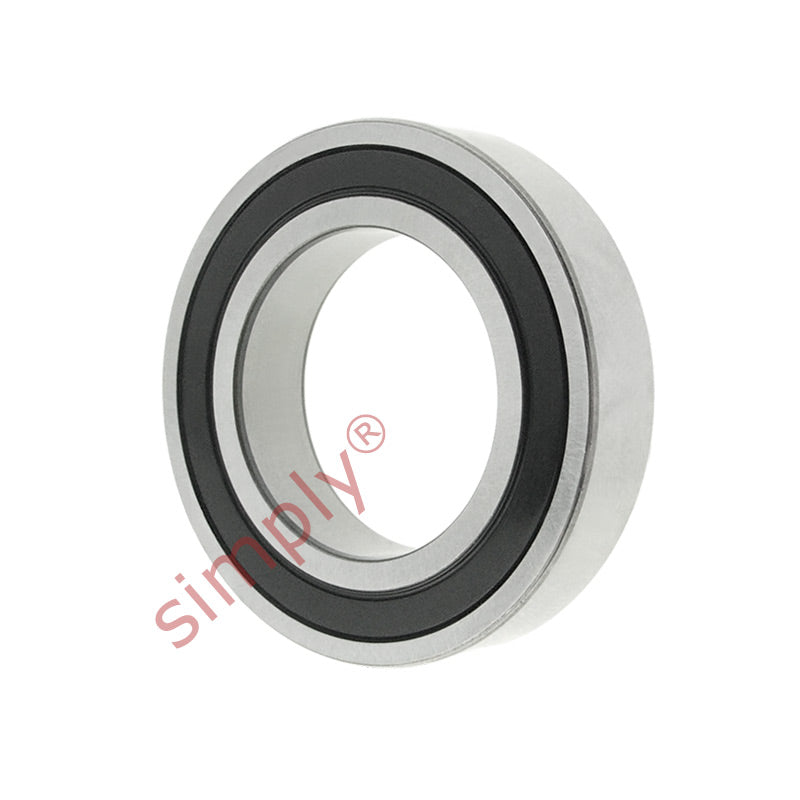

FAG 619122RSR Rubber Sealed Thin Deep Groove Ball Bearing 60x85x13mm
Equivalent to: 61912NSE 61912DU 61912RS 61912RSH 61912P 61912RSR 61912LU 6912NSE 6912DU 6912RS 6912RSH 6912P 6912RSR 6912LU 619122NSE 61912DDU 619122RS 619122RS1 619122RSH 61912PP 61912LLU 69122NSE 6912DDU 69122RS 69122RS1 69122RSH 6912PP 69122RSR 6912LLU
In stock
Couldn't load pickup availability
Share this product
Description
|
Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing |
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 85mm
- Width:
- 13mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
| d | 60mm |
|---|---|
| D | 85mm |
| B | 13mm |
| Dynamic load C | 16.5 kN |
| Static load Co | 14.3 kN |
| Fatigue load limit Pu | 0.6 kN |
| Reference speed | 16000 rpm |
| Limiting speed | 4500 rpm |
| Mass | 0.2 kg |
| d1 | 68.2mm |
| D2 | 79.2mm |
| r1r2 min | 1mm |
| da min | 64.6 |
