SKU: 62/22-2RSR-FAG

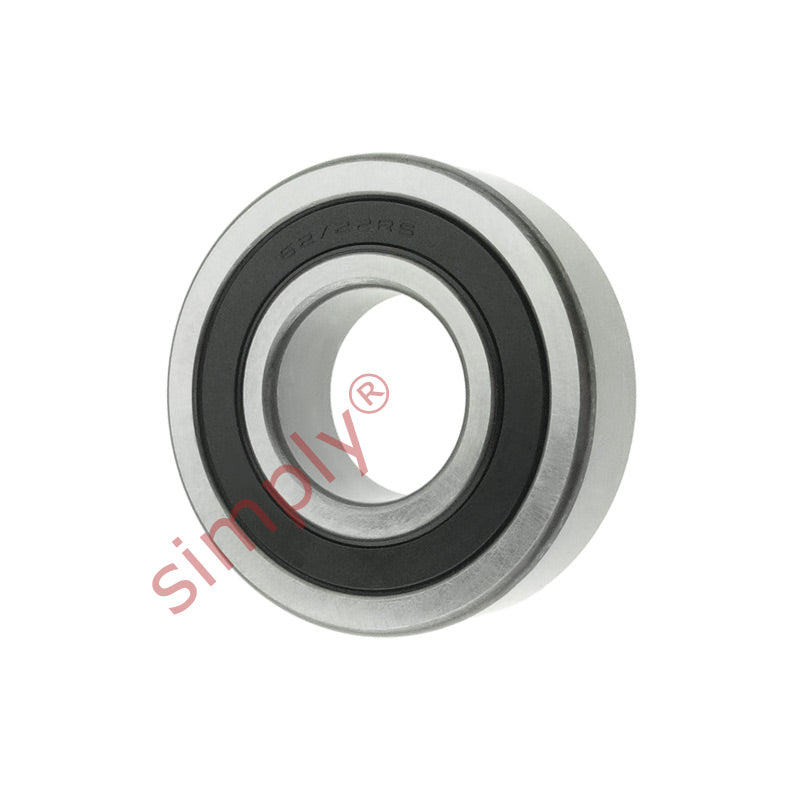

FAG 62/222RSR Rubber Sealed Deep Groove Ball Bearing 22x50x14mm
FAG 62/222RSR Rubber Sealed Deep Groove Ball Bearing 22x50x14mm
Equivalent to: 6222RS 62222RS 6222DDU 6222DU
Out of stock
Share this product
Description
Description
|
Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing |
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 22mm
- Outside Diameter:
- 50mm
- Width:
- 14mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
Technical
| d | 22mm |
|---|---|
| D | 50mm |
| B | 14mm |
| Dynamic load C | 14 kN |
| Static load Co | 7.65 kN |
| Fatigue load limit Pu | 0.325 kN |
| Reference speed | 30000 rpm |
| Limiting speed | 9000 rpm |
| Mass | 0.12 kg |
| d1 | 32.2mm |
| D2 | 44mm |
| r1r2 min | 1mm |
| da min | 27.6 |
