SKU: 6200-ZZE-NACHI

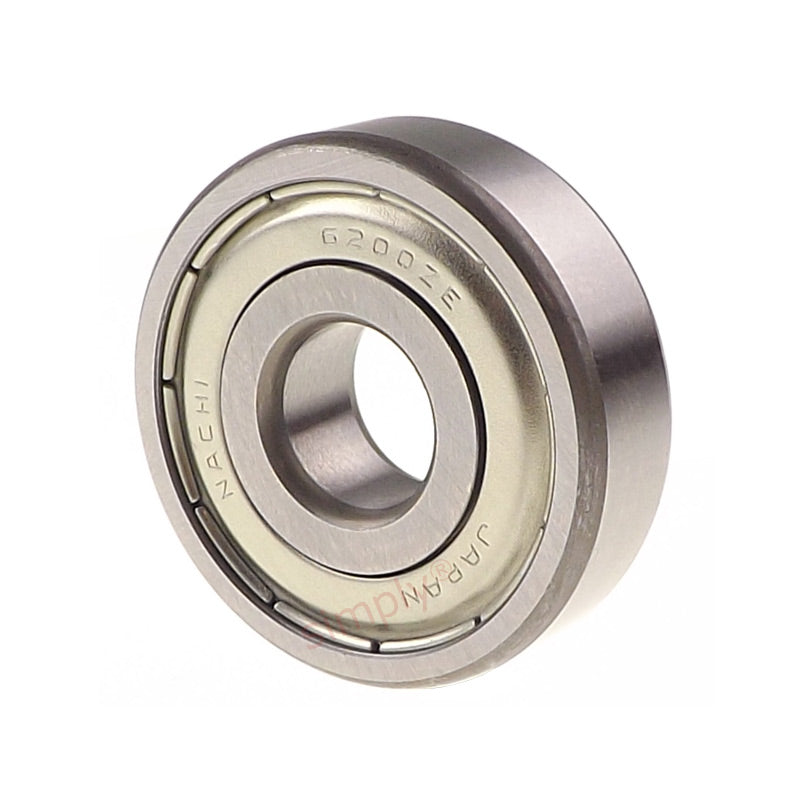

NACHI 6200ZZE Metal Shielded Deep Groove Ball Bearing 10x30x9mm
NACHI 6200ZZE Metal Shielded Deep Groove Ball Bearing 10x30x9mm
Regular price
€4,86
ex VAT
Regular price
Sale price
€4,86
ex VAT
Equivalent to: 6200ZZ 62002Z 6200.2Z 6200KDD 6200DD 62002ZR 6200FF
In stock
Price Break
5+
€3,69
9+
€3,48
19+
€3,44
29+
€3,40
49+
€3,36
74+
€3,32
99+
€3,11
199+
€3,07
249+
€3,03
499+
€2,98
999+
€2,90
Quantity
Couldn't load pickup availability
Description
Description
|
NACHI Metal Shielded Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two steel shields to provide a labyrinth clearance. Benefits: High-running accuracy and high-speed operation. |
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 10mm
- Outside Diameter:
- 30mm
- Width:
- 9mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
Technical
| Inside Diameter d | 10mm |
|---|---|
| Outside Diameter D | 30mm |
| Width B | 9mm |
| Min radius r | 0.6mm |
| Dynamic load | 5100 kN |
| Static load | 2390 kN |
| Max speed | 25000 rpm |
| da min | 15mm |
| Da max | 25mm |
| ra max | 0.6mm |
| Weight | 0.032 kg |
