SKU: 6200DDUC3-NSK
NSK 6200DDUC3 Rubber Sealed Deep Groove Ball Bearing 10x30x9mm
NSK 6200DDUC3 Rubber Sealed Deep Groove Ball Bearing 10x30x9mm
Regular price
€4,94
ex VAT
Regular price
Sale price
€4,94
ex VAT
Equivalent to: 6200NSEC3 6200DUC3 6200RSC3 6200RSHC3 6200PC3 6200RSRC3 6200LUC3 62002NSEC3 62002RSC3 62002RS1C3 62002RSHC3 6200PPC3 62002RSRC3 6200LLUC3
In stock
Price Break
4+
€3,76
10+
€3,54
20+
€3,50
30+
€3,46
50+
€3,42
75+
€3,38
100+
€3,17
200+
€3,12
250+
€3,08
500+
€3,04
1000+
€2,95
Quantity
Couldn't load pickup availability
Share this product
Description
Description
Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing |
- Brand / Quality:
- NSK - High Quality
- Inside Diameter:
- 10mm
- Outside Diameter:
- 30mm
- Width:
- 9mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- C3

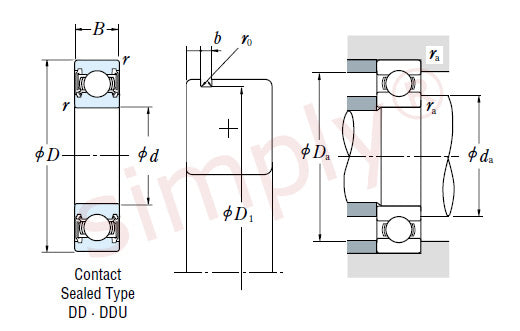

Technical
Technical
| d | 10mm |
|---|---|
| D | 30mm |
| B | 9mm |
| r min | 0.6mm |
| Dynamic load Cr | 5100 N (520 kgf) |
| Static load Cor | 2390 N (244 kgf) |
| Factor | 13.2 |
| Speed in grease | 18000 rpm |
| Speed in oil | 30000 rpm |
| Weight | 0.032 kg |
