SKU: 6203-2RSH/C3-EU

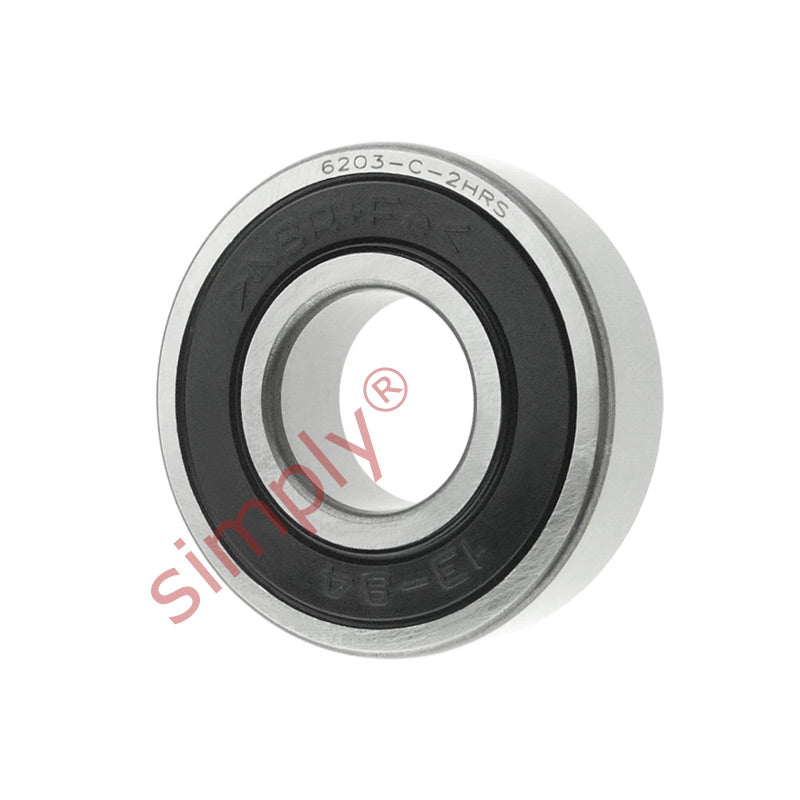

62032RSC3 Budget Rubber Sealed Deep Groove Ball Bearing 17x40x12mm
Equivalent to: 6203NSEC3 6203DUC3 6203RSC3 6203RSHC3 6203PC3 6203RSRC3 6203LUC3 62032NSEC3 6203DDUC3 6203PPC3 62032RSRC3 6203LLUC3 62032RSC3 6203RS2C3 62032RS2C3 62032RS1C3
In stock
Price Break
Couldn't load pickup availability
Share this product
Description
|
Budget Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 40mm
- Width:
- 12mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- C3
Technical
| d | 17mm |
|---|---|
| D | 40mm |
| B | 12mm |
| r min | 0.6mm |
| Dynamic load Cr | 9.55 kN |
| Static load Cor | 4.8 kN |
| Speed in grease | 17000 rpm |
| Speed in oil | 21000 rpm |
