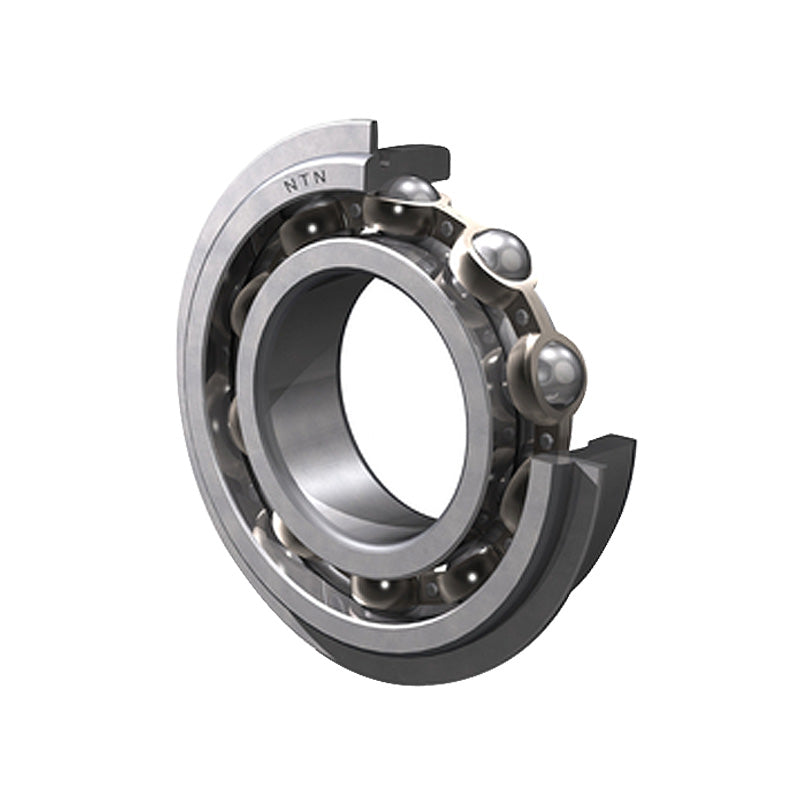

NTN 6203NR Open Type Deep Groove Ball Bearing with Snap Ring 17x40x12mm
NTN 6203NR Open Type Deep Groove Ball Bearing with Snap Ring 17x40x12mm
Regular price
€11,28
ex VAT
Regular price
Sale price
€11,28
ex VAT
Equivalent to: 6203NRCM 203KG 203SG 43203
In stock
Price Break
3+
€8,57
5+
€8,09
10+
€7,99
25+
€7,90
49+
€7,80
74+
€7,70
99+
€7,22
199+
€7,13
249+
€7,03
499+
€6,93
999+
€6,74
Quantity
Couldn't load pickup availability
Description
Description
|
Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 40mm
- Width:
- 12mm
- Seals / Shields:
- None
- Clearance:
- * Standard
- Snap Ring:
- Snap Ring
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 17mm |
| D | 40mm |
| B | 12mm |
| r<sub>s</sub> min | 0.6mm |
| rNS Min. | 0.5mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 10.6 kN |
| C<sub>or</sub> | 4.6 kN |
| C<sub>u</sub> | 0.355 kN |
| f<sub>0</sub> | 12.8 kN |
| Grease | 18000 rpm |
| Oil | 21000 rpm |
| --- | Snap Ring Dimensions |
| D<sub>1</sub> Max. | 38.1mm |
| a Max. | 2.06mm |
| b Min. | 1.35mm |
| r<sub>o</sub> Max. | 0.4mm |
| D<sub>2</sub> Max. | 44.6mm |
| f Max. | 1.12mm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 21mm |
| d<sub>a</sub> Max. | 23mm |
| D<sub>a</sub> Max. | 36mm |
| D<sub>X</sub> (approx) | 45.5mm |
| C<sub>Y</sub> Max. | 2.9mm |
| C<sub>Z</sub> Min. | 1.2mm |
| r<sub>as</sub> Max. | 0.6mm |
| r<sub>Nas</sub> Max. | 0.5mm |
| Weight | 0.066 kg |
