SKU: 6204-2NSE-NACHI

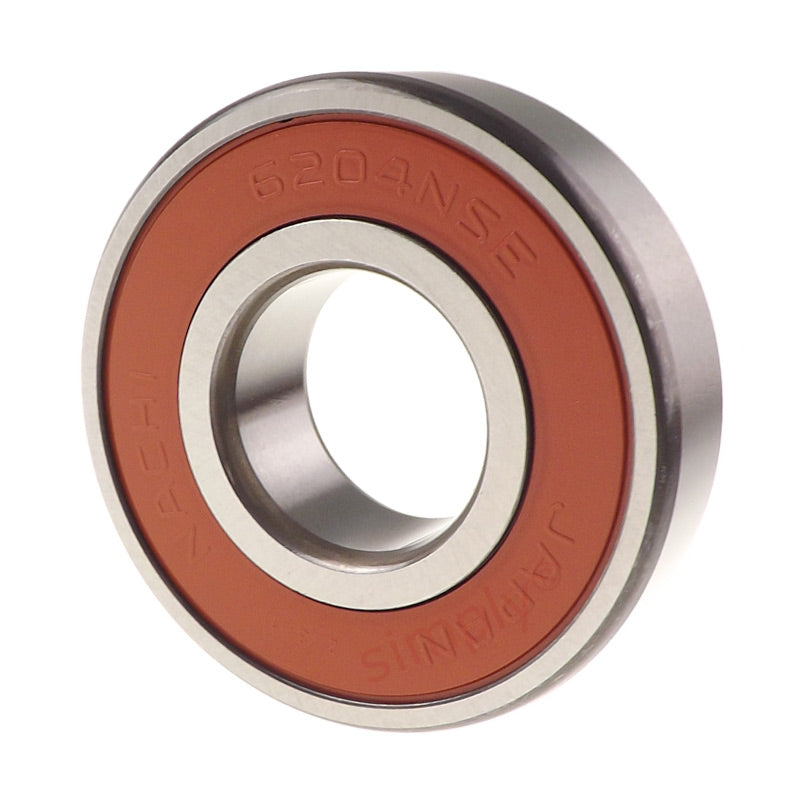

NACHI 62042NSE Contact Rubber Sealed Deep Groove Ball Bearing 20x47x14mm
NACHI 62042NSE Contact Rubber Sealed Deep Groove Ball Bearing 20x47x14mm
Regular price
€8,15
ex VAT
Regular price
Sale price
€8,15
ex VAT
Equivalent to: 6204NSE 6204DU 6204RS 6204RSH 6204P 6204RSR 6204LU 6204DDU 62042RS 62042RS1 62042RSH 6204PP 62042RSR 62042RSR
In stock
Price Break
5+
€6,20
9+
€5,85
19+
€5,78
29+
€5,71
49+
€5,64
74+
€5,57
99+
€5,22
199+
€5,15
249+
€5,08
499+
€5,01
999+
€4,87
Quantity
Couldn't load pickup availability
Description
Description
|
NACHI Contact Rubber Sealed Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two contact rubber seals in contact with inner ring. Benefits: High-running accuracy and high-speed operation, excellent grease sealing at low speeds, excellent protection against dust and water. |
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 47mm
- Width:
- 14mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
Technical
| Inside Diameter d | 20mm |
|---|---|
| Outside Diameter D | 47mm |
| Width B | 14mm |
| Min radius r | 1mm |
| Dynamic load | 12800 kN |
| Static load | 6600 kN |
| Max speed | 16000 rpm |
| da min | 26mm |
| Da max | 41mm |
| ra max | 1mm |
| Weight | 0.106 kg |
