SKU: 6204ZZC3/5K-NTN

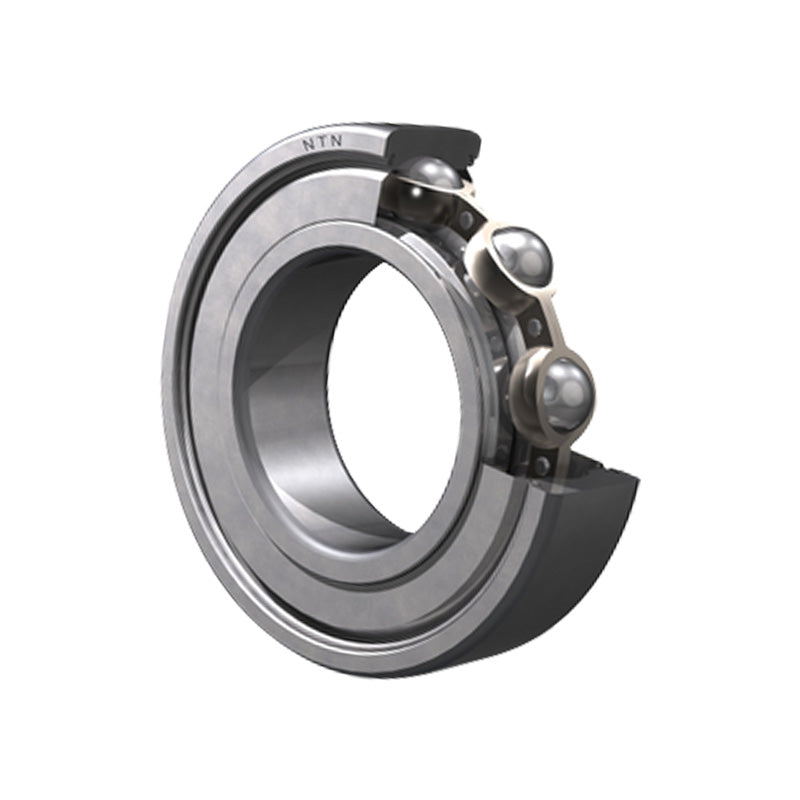

NTN 6204ZZC3/5K Metal Shielded Type Deep Groove Ball Bearing 20x47x14mm

NTN 6204ZZC3/5K Metal Shielded Type Deep Groove Ball Bearing 20x47x14mm
Regular price €9,42 ex VAT
Regular price Sale price €9,42 ex VAT
Sale Sold out

Equivalent to: 6204ZZC3 62042ZC3 6204ZZC3 62042ZRC3 6204ZZEC3 6204FFC3 6204DDC3 6204DDCC3 6204KDDCC3 EL202ZC3 EL20ZZC3 9104KDDC3 9104FFC3 104KSFFC3 773L04C3 6104PPC3

In stock

Price Break
3+ €7,16
5+ €6,75
10+ €6,67
25+ €6,59
49+ €6,51
74+ €6,43
99+ €6,03
199+ €5,95
249+ €5,87
499+ €5,79
999+ €5,63
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Bearing dimensions
d 20mm
D 47mm
B 14mm
r<sub>s</sub> min 1mm
--- Loads angles and speeds
C<sub>r</sub> 14.2 kN
C<sub>or</sub> 6.65 kN
C<sub>u</sub> 0.505 kN
f<sub>0</sub> 13.2 kN
Grease 16000 rpm
Oil 18000 rpm
--- Fitting Dimensions
d<sub>a</sub> Min. 25mm
d<sub>a</sub> Max. 28mm
D<sub>a</sub> Max. 42mm
r<sub>as</sub> Max. 1mm
Weight 0.106 kg
